Actual Product May Vary From Image

0785196 FAL

Name: 0785196 FAL
Brand: Rexnord
SKU: 0785196 FAL
Availability: OutOfStock

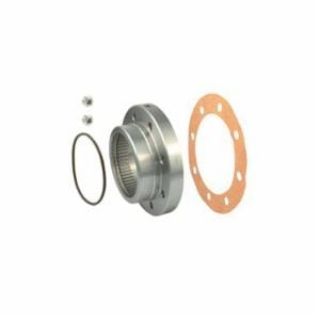

FALK® Lifelign® 785196 GC Series Exposed Bolt Flanged Coupling Full Sleeve, 1030GC Coupling, 7-1/2 in OD, 7.37 in L, Steel

Manufacturer: Rexnord

Manufacturer part number: 785196

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

FALK®

Type

Exposed Bolt

Description

Sleeves for GC Series-Continuous Sleeve Double and Single Engagement Couplings. The gear coupling sleeve is the cover like portion of the gear coupling that contains internal spur teeth and mates with a flex hub. Please be advised that double engagement couplings require the use of two sleeves.

FALK® Lifelign® Flanged Coupling Full Sleeve, Exposed Bolt, Series: GC Series, 1030GC Coupling, 7-1/2 in Outside Dia, 7.37 in Length, For Use With: Lifelign® Type GC02 Gear Coupling, Steel, 4.72 in L

Specifications

Country of Origin:	US
Coupling Size:	1030GC
Dimensions:	4.72 in L
Length:	7.37 in
Material:	Steel
Outside Diameter:	7-1/2 in
Series:	GC Series
Suitable For Use With:	Lifelign® Type GC02 Gear Coupling
