Actual Product May Vary From Image

0788523 FAL

Name: 0788523 FAL
Brand: Rexnord
SKU: 0788523 FAL
Availability: OutOfStock

Coupling Size: 1010; Coupling Type: Gear; Hub Bore Fit (Hub): Clearance; Hub Straight Bore Diameter (Hub): 1.6250 in; Number of Keyways (Hub): 1; Number of Setscrews (Hub): 1; Hub Style (Hub): Standard; Hub Setscrew Axial Location (Hub): 0.26 in; Hub Leng

Manufacturer: Rexnord

Manufacturer part number: 0788523

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Falk Lifelign®

Description

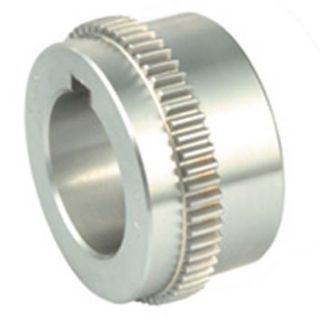

The Lifelign flex hubs have teeth that mate with a sleeve to transmit torque and accommodate equipment shaft misalignment.

Specifications

Coupling Size:	1010
Coupling Type:	Gear
Hub Barrel Outside Diameter Hub:	2.700 in
Hub Bore Fit Hub:	Clearance
Hub Length thru Bore:	1.69 in
Hub Material Hub:	Steel
Hub Setscrew Axial Location Hub:	0.26 in
Hub Straight Bore Diameter Hub Nom:	1.6250 in
Hub Style Hub:	Standard
Hub Type Hub:	Flex
Keyway Depth Hub:	0.1875 in
Keyway Fit Hub:	Commercial
Keyway Width Hub:	0.3750 in
Model:	1010G
Number of Keyways Hub:	1
Number of Setscrews Hub:	1
