Actual Product May Vary From Image

0788526 FAL

Name: 0788526 FAL
Brand: Rexnord
SKU: 0788526 FAL
Availability: OutOfStock

Coupling Size: 1030; Coupling Type: Gear; Hub Bore Fit (Hub): Interference; Hub Straight Bore Diameter (Hub): 3.9750 in; Number of Keyways (Hub): 1; Number of Setscrews (Hub): 0; Hub Style (Hub): Standard; Hub Length thru Bore (Hub): 3.59 in; Hub Type (Hu

Manufacturer: Rexnord

Manufacturer part number: 0788526

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Falk Lifelign®

Description

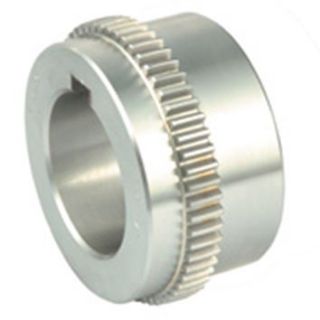

The Lifelign flex hubs have teeth that mate with a sleeve to transmit torque and accommodate equipment shaft misalignment.

Specifications

Coupling Size:	1030
Coupling Type:	Gear
Hub Barrel Outside Diameter Hub:	2.700 in
Hub Bore Fit Hub:	Interference
Hub Length thru Bore:	3.59 in
Hub Material Hub:	Steel
Hub Straight Bore Diameter Hub Nom:	3.9750 in
Hub Style Hub:	Standard
Hub Type Hub:	Flex
Keyway Depth Hub:	0.5000 in
Keyway Fit Hub:	Commercial
Keyway Width Hub:	1.0000 in
Model:	1030G
Number of Keyways Hub:	1
Number of Setscrews Hub:	0
