08B13 MSG

Product Details

Manufacturer part number:
08B13
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Martin

Type

Type B Single Strand Solid Stock Bore

Description

Metric B style sprockets are flat sprockets with a hub extension on one side. These plain bore sprockets can easily be bored to a metric or standard size to fit your application. Keyways, set screws and harden teeth are quick alterations that can be made.

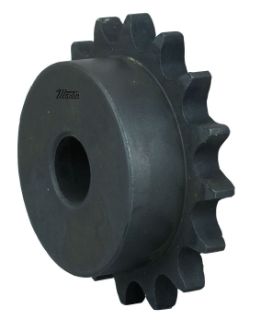

Martin Roller Chain Sprocket, Type B Single Strand Solid Stock Bore, 10 to 25 mm Bore, 60.434 mm OD, #08B-1 Chain, 13 Teeth, 12.7 mm Pitch, 53.068 mm Pitch Diameter, 37.998 mm Diameter Hub, 28 mm Length Through Bore, Steel

Standards

ANSI B29.1 - 1975 | BS 228/7 | CEMA Standard | ECCN: EAR99 | MPTA Approved | NIBA Certified | PTDA Approved

Features

  • Without hardened teeth
  • Precise machining and processes ensure consistent finish and high quality
  • Bores are concentric to pitch line, minimizing run out
  • Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain

Specifications

Bore Diameter:10 to 25 mm
Chain Size:#08B-1
Country of Origin:US
Hub Diameter:37.998 mm
Length Through Bore:28 mm
Material:Steel
Number of Teeth:13
Outside Diameter:60.434 mm
Pitch:12.7 mm
Pitch Diameter:53.068 mm
