08TU12 ISO

Name: 08TU12 ISO
Brand: Isostatic
SKU: 08TU12 ISO
Price: 3.20 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Isostatic

Manufacturer part number:

501024

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

$3.20 / EA

Description

Brand Name

ISOSTATIC™

Type

Round Bore

Description

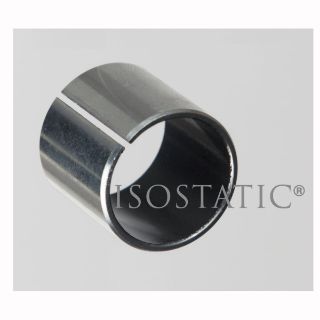

ISOSTATIC™ TU® Sleeve Bearing, Round Bore, 1/2 in Bore, 19/32 in OD, 3/4 in Width, -328 to 536 deg F, 36250 psi Maximum, 1900 sfpm Maximum Velocity, 102000 psi/sq-ft/min Maximum PV, Steel-Backed PTFE Lined Bearing

Application

For linear, rotary and oscillating applications

Standards

REACH | DFARS Compliant | PROP65: This product can expose you to chemicals including lead which is known to the state of California to cause birth defects or other reproductive harm. For more information go to www.P65WARNINGS.ca.gov

Features

Standard stock products
Self-lubricating dry sliding bearing
A steel-backed composite material comprised of low carbon steel backing for extremely high load capacity, sintered bronze offers optimal heat dispersion, PTFE-lead sliding surface creates a low friction coefficient and allows for a wide temperature range
Can be used where many liquid lubricants fail, also performs well with lubrication
Ideal for heavy loads at moderate speeds or light loads at high speeds

Specifications

Bearing Material:	Steel-Backed PTFE Lined
Bore Diameter:	1/2 in
Country of Origin:	US
Maximum Pressure:	36250 psi
Maximum PV Rating:	102000 psi/sq-ft/min
Maximum Velocity:	1900 sfpm
Outside Diameter:	19/32 in
Temperature Rating:	-328 to 536 deg F
Width:	3/4 in
