0925 IDE

Product Details

Manufacturer:
Manufacturer part number:
0925
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Ideal

Type

Medium Duty Terminal Block

Description

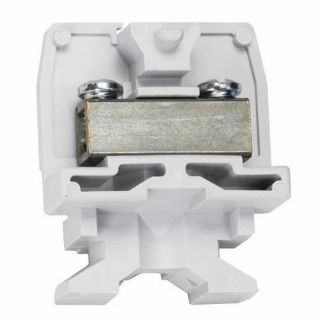

Ideal 0925 Medium Duty Terminal Block, Wire Size: 10 - 22 AWG, Spacing: 3/8 IN, Amperage Rating: 30 AMP, Voltage Rating: 600 V, Polyester, Gray, Mounting: Channel Mount (Dovetail Base), Connection: Tubular Clamp, 10-32 Combo Head, Screw Torque: 8 IN-LB, Contact Material: Copper Alloy, Zinc Plated, Steel, Zinc Plated Screw, Flammability: UL94V-0 Rated, For High Temperature

Application

For High Temperature

Features

This family of polyester blocks is ideal for high-temperature applications; The rugged material withstands temperatures up to 302 DEG F (150 DEG C); Three contact styles cover broad wire range - accept single wire or combinations from 22 - 8 AWG solid or stranded; Rated at 15 - 50 AMP per circuit; Flat-base models mount directly to surfaces, dovetail base models mount on standard channel; Only one end section needed per block assembly; Readily identifiable circuits - write directly on matte-surface of block; Sections snap-fit with heavy-duty, intermediate heavy-duty and fuse blocks

Specifications

Amperage Rating:30 AMP
Color:Gray
Connection:Tubular Clamp, 10-32 Combo Head
Country of Origin:USA
Material:Polyester
Mounting:Channel Mount (Dovetail Base)
Spacing:3/8 IN
Sub Brand:Ideal
Voltage Rating:600 V
Wire Size:10 - 22 AWG
