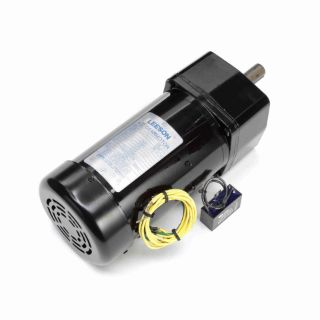

Actual Product May Vary From Image

096004.00 LEE

Name: 096004.00 LEE
Brand: Leeson Electric
SKU: 096004.00 LEE
Price: 913.13 USD
Availability: OutOfStock

LEESON® 096004.00 PE350 Parallel Shaft Continuous Duty Gear Motor, 115/230 VAC, 0.16 hp, 58:1 Gear Ratio, 29 rpm Max, 270 in-lb Torque

Manufacturer: Leeson Electric

Manufacturer part number: 096004.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$913.13

Qty:

Product Details

Brand Name

LEESON®

Type

Parallel Shaft Continuous Duty

Description

LEESON® Gear Motor, Parallel Shaft Continuous Duty, Series: PE350, 115/230 VAC, 4/2 A Full Load Amperage, 0.16 hp, 60 Hz Frequency, 1 ph, 29 rpm Maximum, 3/4 in Shaft Diameter, 1-5/8 in Shaft Length, Reversible Rotation, 270 in-lb Torque, 58:1 Gear Ratio, Permanent Split Capacitor Motor, Ball Bearing, 327 lb Overhung Load, Special Mounting, 40 deg C Ambient, Class F Insulation, Totally Enclosed Fan Cooled Enclosure, Die Cast Aluminum Housing Material, 13.32 in L x 5.57 in H Dimensions

Standards

AGMA Class 9 | CSA Certified | UL Listed

Features

Rugged die cast aluminum gear housing for maximum gear and bearing support
Precision machined gearing and hardened for maximum load capability
All gearing designed and rated to AGMA class 9 standards and to withstand momentary shock overload of 200%
Oversized output bearings for greater overhung load capacity and long life
High carbon alloy output shaft provides maximum strength and rigidity
All needle bearing journals are precision ground after heat treating to provide maximum fit and finish
Heavy duty industrial oil seals keep lubricant in and dirt out
Gears and bearings are splash lubricated with permanent, heavy duty gear oil
Run capacitor supplied at no additional cost for single phase designs
Overhung load capacities shown are at center of output shaft
These gear motors are designed for mounting at any angle
Sub-fractional horsepower AC motors

Specifications

Bearing Type:	Ball
Country of Origin:	US
Dimensions:	13.32 in L x 5.57 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frequency Rating:	60 Hz
Full Load Amperage:	4/2 A
Gear Ratio:	58:1
Horsepower:	0.16 hp
Housing Material:	Die Cast Aluminum
Insulation Type:	Class F
Maximum Speed:	29 rpm
Motor Type:	Permanent Split Capacitor
Mounting Type:	Special
Overhung Load:	327 lb
Phase:	1
Rotation Type:	Reversible
Series:	PE350
Shaft Diameter:	3/4 in
Shaft Length:	1-5/8 in
Temperature Rating:	40 deg C Ambient
Torque Rating:	270 in-lb
Voltage Rating:	115/230 VAC
