Actual Product May Vary From Image

099120 DOD

Name: 099120 DOD
Brand: Dodge
SKU: 099120 DOD
Price: 80.10 USD
Availability: OutOfStock

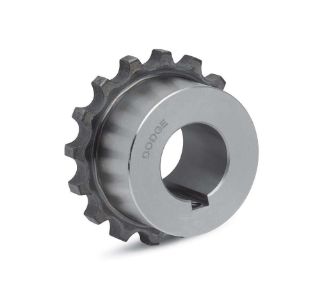

FB6018 X 1 3/4 CHAIN CPLG FLG

Manufacturer: Dodge

Manufacturer part number: 099120

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$80.10

Qty:

Product Details

Angular Misalignment:	2.0000
Angular Misalignment (Unit):	DEGREE
ATEX Certificate:	No
Axial Misalignment:	0.3000
Axial Misalignment (Unit):	INCH
Bore Diameter (Actual):	1.7500
Bore Diameter (Actual) (Unit):	INCH
Bore Fit:	Clearance
Bore Length:	1.8800
Bore Length (Unit):	INCH
Bore Tolerance Standard:	AGMA 9002
Coupling Component:	Flange
Coupling Size:	6018
Coupling Style:	Chain
Coupling Type:	Metallic
Flange Material:	Steel
Lubrication:	Grease
Maximum Speed:	3000
Maximum Speed (Unit):	RPM
Maximum Speed Without Cover:	675.0000
Maximum Speed Without Cover (Unit):	RPM
Maximum Temperature Rating:	225.0000
Maximum Temperature Rating (Unit):	FAHRENHEIT
Minimum Temperature Rating:	-30.0000
Minimum Temperature Rating (Unit):	FAHRENHEIT
Parallel Misalignment:	0.0150
Parallel Misalignment (Unit):	INCH
Shaft Attachment:	Bored To Size
Shaft Spacing:	Close Coupled
