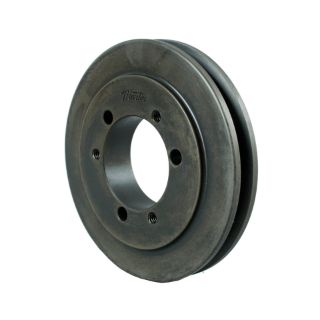

Actual Product May Vary From Image

1 3V 265 JA MSG

Name: 1 3V 265 JA MSG
Brand: Martin Sprocket & Gear
SKU: 1 3V 265 JA MSG
Price: 44.46 USD
Availability: InStock

Martin Hi-Cap® 1 3V 265 JA Solid Type C-1 Single Groove Wedge Stock Sheave, QD® Bushed Bore, 1 in Dia Bore, 2.65 in OD, 2.6 in Dia Pitch, 11/16 in W Face

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 1 3V 265 JA

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	1	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

$44.46

Qty:

Product Details

Brand Name

Martin

Type

Solid Type C-1

Description

Hi-Cap® sheaves (narrow V-belts) are manufactured from class 30 gray iron (30000 tensile strength) and can have a maximum speed of 6500 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 5000 fpm or if they will be used on equipment where vibration is a problem. Martin has extensive inventories of both QD and TB style V-belt sheaves to run with 3V, 5V and 8V belts.

Martin Hi-Cap® Single Groove Wedge Stock Sheave, Solid Type C-1, QD® Bushed Bore, 1 in Bore, 2.65 in OD, 2.6 in Pitch Diameter, 11/16 in Face Width, JA Bushing, 1.06 in Overall Length, For Use With: 3V-Cross Section V-Belts, Steel

Features

Interchangeable with other manufacturer's QD bushings
Tolerances adhere to industry guidelines
Precise machining and processes ensure consistent finish and high quality
Statically balanced with maximum rim speed marked on print

Specifications

Bore Diameter:	1 in
Bore Type:	QD® Bushed
Bushing Type:	JA
Country of Origin:	US
Face Width:	11/16 in
Material:	Steel
Outside Diameter:	2.65 in
Overall Length:	1.06 in
Pitch Diameter:	2.6 in
Suitable For Use With:	3V-Cross Section V-Belts
