1-5/16 ILS

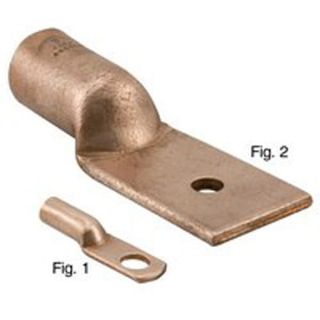

ILSCO® ClearChoice® 1-5/16 1-Hole Solder Lug Connector, 800 kcmil Copper Conductor, 1/2 in Stud, Copper
Manufacturer: Ilsco
Manufacturer part number: 1-5/16
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
Loading...
Price on Request

Product Details

Brand Name

ILSCO®

Type

1-Hole

Description

ILSCO® ClearChoice® Solder Lug Connector, 1-Hole, Copper Conductor, 800 kcmil Conductor, 600 VAC, 1/2 in Stud, 1.938 in W x 0.25 in THK Tongue, 5-1/16 in Overall Length, 0.313 in Dia x 0.813 in L Barrel, 550 A, 1-1/8 in Mounting Hole Spacing, 90 deg C, 0.531 in Dia Mounting Hole, Copper, 5-1/16 in L x 1-15/16 in W

Application

Terminating Connector

Standards

UL 486A/B File No. E6207 | CSA File No. LR29601

Features

  • Manufactured from high strength copper tubing
  • Seamless construction
  • Clearly marked with wire size
  • If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 kV
  • Won't leak solder
  • Provides maximum conductivity
  • For copper conductor only

Specifications

Barrel Size:0.313 in Dia x 0.813 in L
Conductor Size:800 kcmil
Conductor Type:Copper
Country of Origin:US
Dimensions:5-1/16 in L x 1-15/16 in W
Material:Copper
Mounting Hole Size:0.531 in Dia
Overall Length:5-1/16 in
Specifications:550 A, 1-1/8 in Mounting Hole Spacing
Stud Size:1/2 in
Temperature Rating:90 deg C
Tongue Size:1.938 in W x 0.25 in THK
Voltage Rating:600 VAC
