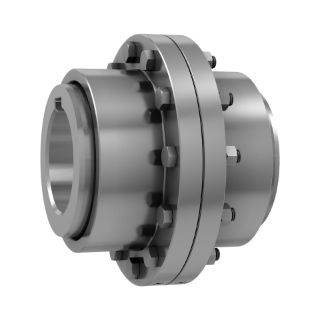

Actual Product May Vary From Image

1 5/8W PL FR FB KOP

Name: 1 5/8W PL FR FB KOP
Brand: Regal Rexnord
SKU: 1 5/8W PL FR FB KOP
Availability: OutOfStock

Kop-Flex® Powerlign® 2296630 Finished Bore Gear Coupling, 1-3/4 in Dia Bore, 3-9/16 in OD, 3-5/8 in OAL, 7560 in-lb Continuous/15120 in-lb Peak Torque, 11000 rpm Max

Manufacturer: Regal Rexnord

Manufacturer part number: 2296630

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Kop-Flex®

Type

Finished Bore

Description

Waldron® couplings are available in the Powerlign® series of flangeless gear couplings. This design transmits the same torque as the standard line. It also offers a more compact design, which is capable of running at higher speeds. This coupling design is ideal for applications where space is limited.

Kop-Flex® Powerlign® Gear Coupling, Finished Bore, 1-3/4 in Bore, 3-9/16 in OD, 3-5/8 in Overall Length, Flex/Rigid Hub, 2-1/2 in Hub, 1-3/4 in Length Through Bore, 7560 in-lb Continuous/15120 in-lb Peak Torque, 11000 rpm Maximum, 12 hp Power, 250 deg F, Carbon Steel

Application

Aggregate and Cement, Coal Power Generation, Cranes, Hoists, HVAC, Marine, Metals, Minerals, Mining, Packaging Machinery, Pulp, Paper, Unit Handling, Water and Wastewater Industries

Standards

AGMA/ANSI 9112

Features

Improved soft seal
Unique tooth form
Full tooth engagement
Quality exposed fasteners
Corrosion resistant
Interchangeable
Higher misalignment capability
No bolt design
H type (high misalignment) lip seal for better life
Curved face gear tooth with 40 deg pressure angle
1-1/2 in misalignment per gear mesh (static)
Grease lubrication
Flangeless, continuous sleeve design for a compact, rugged gear coupling design
Unique 40 deg tooth form distributes loads over a larger area than a 20 deg tooth
Curved face teeth (sizes 1 through 7) for up to 1.5 deg static misalignment capability
Unique, high misalignment seal design, superior to standard o-ring
Size 1.625 coupling

Includes

(1) Setscrew and (1) Keyway

Specifications

Bore Diameter:	1-3/4 in
Country of Origin:	US
Hub Size:	2-1/2 in
Hub Type:	Flex/Rigid
Length Through Bore:	1-3/4 in
Material:	Carbon Steel
Maximum Speed:	11000 rpm
Outside Diameter:	3-9/16 in
Overall Length:	3-5/8 in
Power Rating:	12 hp
Temperature Rating:	250 deg F
Torque Rating:	7560 in-lb Continuous/15120 in-lb Peak
