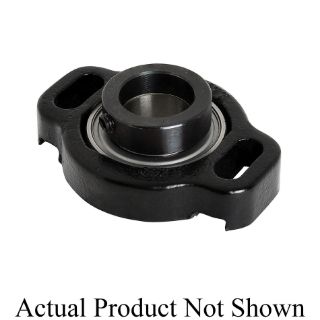

Actual Product May Vary From Image

1 7/16 B/P12177 TKN

Name: 1 7/16 B/P12177 TKN
Brand: Timken
SKU: 1 7/16 B/P12177 TKN
Price: 730.85 USD
Availability: OutOfStock

Ball Housed Unit, Non-standard

Manufacturer: Timken

Manufacturer part number: 1 7/16 B/P12177

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$730.85

Qty:

Product Details

Brand Name

Timken® Fafnir®

Description

Designed to maximize performance, Timken® Fafnir® ball bearing housed units combine the bearing, housing, seal and locking system into one device for easy installation and operation. Timken Fafnir housed units feature specialized product lines to solve specific application concerns. Our problem solver series helps prevent downtime by using superior technology to keep equipment running efficiently and improve your bottom line

Ball Housed Unit, Non-standard | 36.52 mm 1.44 in Bore 72 mm 2.83 in OD

Features

Special 2 Bolt Flanged housing with standard RA107RRB bearing

Specifications

Bearing Material:	Steel
Bearing Type:	Wide Inner Ring Ball Bearing Insert
Bolt Center - in:	3.75
Bolt Center - mm:	95.25
Bolt Size - in:	1
Bolt Size - mm:	25.4
Bore Size (ID) - in:	1.43775
Bore Size (ID) - mm:	36.51885
Bore Type:	Round
Component (I/R; O/R assembly):	Assembly
Duty Type:	Standard duty
Dynamic Load Rating:	6400
Housing Material:	Cast Iron
Housing Style:	B/P units
Inner Ring Width - Inch:	0.99765
Inner Ring Width - Millimeter:	25.34031
Insert Part Number:	N/P
Internal Clearance:	P(C3)
Load Rating UOM:	LB
Locking Type:	Eccentric
Lubrication Hole/Groove:	NO
Manufacturer Product Page Link:	https://www.timken.com/products/timken-engineered-bearings/housed-units/
Material - Rolling Elements (Ball or Roller):	STEEL
Outer Diameter - in:	2.8346
Outer Diameter - mm:	71.99884
Outer Diameter Type:	Spherical
Outer Ring Width - Inch:	0.74565
Outer Ring Width - Millimeter:	18.93951
Overall Height - in:	5.125
Overall Height - mm:	130.175
Overall Length - in:	12.7
Overall Length - mm:	322.58
Overall Width - in:	3.6875
Overall Width - mm:	93.6625
Precision class:	ISO Normal/ABEC1
Relubricatable:	YES
Retainer Material:	Nylon
Retainer Type:	One Piece Molded Nylon
Rolling Element:	Ball
Static Load Rating:	3440
