1-7/16 ILS

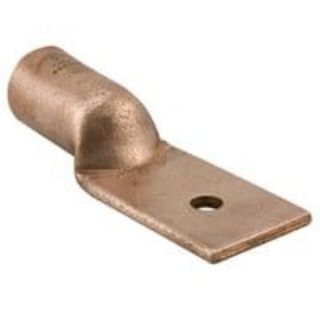

ILSCO® ClearChoice® 1-7/16 1-Hole Solder Lug Connector, 1000 kcmil Copper Conductor, 7/8 in Stud, Copper
Manufacturer: Ilsco
Manufacturer part number: 1-7/16
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
Loading...
Price on Request

Product Details

Brand Name

ILSCO®

Type

1-Hole

Description

ILSCO® ClearChoice® Solder Lug Connector, 1-Hole, Copper Conductor, 1000 kcmil Conductor, 600 VAC, 7/8 in Stud, 2-1/8 in W x 1/4 in THK Tongue, 5-3/8 in Overall Length, 1.438 in Dia x 2 in L Barrel, 650 A, 1.188 in Mounting Hole Spacing, 90 deg C, 0.906 in Dia Mounting Hole, Copper, 5-3/8 in L x 2-1/8 in W

Application

Terminating Connector

Standards

ARRA Compliant | Buy American Act | RoHS Compliant | UL 486A/B File No. E6207 | CSA File No. LR29601

Features

  • Manufactured from high strength copper tubing
  • Seamless construction
  • Clearly marked with wire size
  • If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 kV
  • Won't leak solder
  • Provides maximum conductivity
  • For copper conductor only

Specifications

Barrel Size:1.438 in Dia x 2 in L
Conductor Size:1000 kcmil
Conductor Type:Copper
Country of Origin:US
Dimensions:5-3/8 in L x 2-1/8 in W
Material:Copper
Mounting Hole Size:0.906 in Dia
Overall Length:5-3/8 in
Specifications:650 A, 1.188 in Mounting Hole Spacing
Stud Size:7/8 in
Temperature Rating:90 deg C
Tongue Size:2-1/8 in W x 1/4 in THK
Voltage Rating:600 VAC
