100 DLT DROPOUT BE=12 LOV

Lovejoy® 68514439250 Deltaflex Type 3 Drop-Out Spacer, For Use With Size 100 Couplings, 12 in Length Thru Bore, 12 in Drop Out Length, Metal
Manufacturer: Lovejoy
Manufacturer part number: 68514439250
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Lovejoy®

Type

Type 3

Description

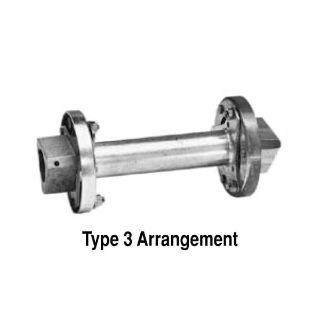

This arrangement is specifically designed for the pump industry and is available in a variety of industry standard shaft separations. The shaft center spacer drops out to facilitate easier maintenance of pump parts without disturbing the alignment of pump and motor. Spacer type couplings utilize either standard delta hubs or optional round hubs. The center member of the Deltaflex® is captured by the construction of the spacer flanges for greater safety. Standard spacer drop out lengths are available to accommodate shaft separations of 3-1/2, 4.38, 5, 7, 10, 12 and 15 in. Special spacer lengths and stainless steel spacer couplings are available as an option. Type 3 (Spacer Type) Deltaflex® coupling are comprised of two hubs, two spacer flanges (with hardware) and a dropout spacer.
Lovejoy® Drop-Out Spacer, Type 3, Series: Deltaflex, For Use With: Size 100 Couplings, Specifications: 12 in Length Thru Bore, 12 in Drop Out Length, Metal, Metallic, 4.38 in Dia

Standards

ECCN EAR99

Features

  • Maximum misalignment capabilities, with negligible reactionary load, for longer equipment bearing life
  • Operates as smoothly when misaligned as when perfectly aligned
  • No lubrication and no maintenance required
  • Equipment can be visually aligned, no special tools are required, which saves on installation time and cost
  • Eliminates premature equipment bearing and seal failure resulting from misalignment forces, this means greater equipment productivity
  • Torsionally stiff coupling with no backlash means it is capable of high speed applications, within catalog ratings
  • Provides long-term performance and economy

Specifications

Country of Origin:US
Dimensions:4.38 in Dia
Finish:Metallic
Material:Metal
Series:Deltaflex
Specifications:12 in Length Thru Bore, 12 in Drop Out Length
Suitable For Use With:Size 100 Couplings
