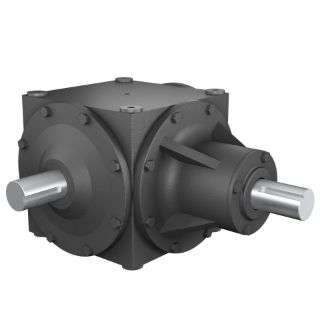

Actual Product May Vary From Image

1000 1/1.87 C,F ST HUB

Name: 1000 1/1.87 C,F ST HUB
SKU: 1000 1/1.87 C,F ST HUB
Availability: OutOfStock

Hub City® 0220-04624 1000 Right Angle Straight Single Reduction Style C F Bevel Gear Reducer, Shaft Input, Shaft Output, 34.6 hp, 1:1.87 Gear, 748 rpm Maximum Output, 2910 in-lb Torque Rating

Manufacturer part number: 0220-04624

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Straight Single Reduction Style C F

Description

Regal Beloit offers a wide array of enclosed spiral or straight bevel gearing solutions with universal mounting for right angle transmission.

Hub City® Bevel Gear Reducer, Right Angle Straight Single Reduction Style C F, Series: 1000, 1:1.87 Gear Ratio, 34.6 hp, Shaft Input, Shaft Output, 1-3/4 in Dia x 3 in L Input, 1-3/4 in Dia Output, 748 rpm Output Maximum Speed, 400 rpm Input Maximum Speed, 2910 in-lb, 13 in Centre Distance, 3/8 x 3/16 in Input Keyway, 97.5 % Efficiency, Four-Bolt Surface Mount, Ductile Iron, 17-3/4 in D x 9-1/2 in H

Application

Agriculture, Aerospace, Construction, Food Processing, Medical, Material Handling, Packaging, Recreation and Transportation

Standards

AGMA Class 1

Features

Rugged ductile iron housing
Universal mounting dimensions
Alloy shafting
Heavy duty industrial seals

Specifications

Centre Distance:	13 in
Country of Origin:	US
Dimensions:	17-3/4 in D x 9-1/2 in H
Efficiency:	97.5 %
Gear Ratio:	1:1.87
Horsepower:	34.6 hp
Input Maximum Speed:	400 rpm
Input Size:	1-3/4 in Dia x 3 in L
Input Type:	Shaft
Keyway Size:	3/8 x 3/16 in Input
Material:	Ductile Iron
Mounting Type:	Four-Bolt Surface
Output Maximum Speed:	748 rpm
Output Size:	1-3/4 in Dia
Output Type:	Shaft
Series:	1000
Torque Rating:	2910 in-lb
