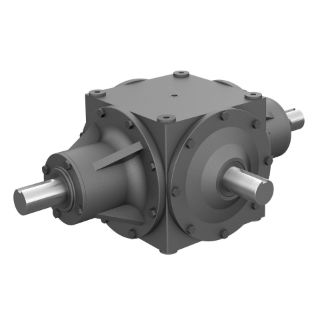

Actual Product May Vary From Image

1000 1.87/1 GG ST HUB

Name: 1000 1.87/1 GG ST HUB
SKU: 1000 1.87/1 GG ST HUB
Availability: OutOfStock

Hub City® 0220-04634 1000 Right Angle Straight Single Reduction Style GG Bevel Gear Reducer, Shaft Input, Shaft Output, 50.1 hp, 1.87:1 Gear, 534.8 rpm Maximum Output, 5900 in-lb Torque Rating

Manufacturer part number: 0220-04634

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Straight Single Reduction Style GG

Description

Regal Beloit offers a wide array of enclosed spiral or straight bevel gearing solutions with universal mounting for right angle transmission.

Hub City® Bevel Gear Reducer, Right Angle Straight Single Reduction Style GG, Series: 1000, 1.87:1 Gear Ratio, 50.1 hp, Shaft Input, Shaft Output, 1-3/4 in Dia x 3 in L Input, 1-3/4 in Dia Output, 534.8 rpm Output Maximum Speed, 1000 rpm Input Maximum Speed, 5900 in-lb, 13 in Centre Distance, 3/8 x 3/16 in Input Keyway, 97.5 % Efficiency, Four-Bolt Surface Mount, Ductile Iron, 26.001 in W x 18.28 in D x 9.5 in H

Application

Agriculture, Aerospace, Construction, Food Processing, Medical, Material Handling, Packaging, Recreation and Transportation

Standards

AGMA Class 1

Features

Rugged ductile iron housing
Universal mounting dimensions
Alloy shafting
Heavy duty industrial seals

Specifications

Centre Distance:	13 in
Country of Origin:	US
Dimensions:	26.001 in W x 18.28 in D x 9.5 in H
Efficiency:	97.5 %
Gear Ratio:	1.87:1
Horsepower:	50.1 hp
Input Maximum Speed:	1000 rpm
Input Size:	1-3/4 in Dia x 3 in L
Input Type:	Shaft
Keyway Size:	3/8 x 3/16 in Input
Material:	Ductile Iron
Mounting Type:	Four-Bolt Surface
Output Maximum Speed:	534.8 rpm
Output Size:	1-3/4 in Dia
Output Type:	Shaft
Series:	1000
Torque Rating:	5900 in-lb
