1000XXH500 BRN

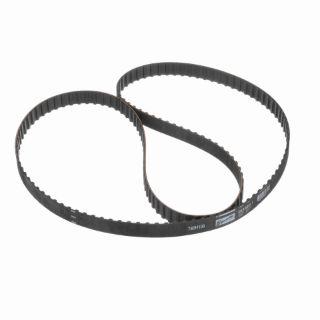

Browning® Gearbelt® 3112984 Type XXH Synchronous Belt, 80 Teeth, 1-1/4 in Pitch, 100 in OAL, 5 in W, Neoprene
Manufacturer: Regal Rexnord
Manufacturer part number: 3112984
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Browning®

Type

Type XXH

Description

Browning® Gearbelt® Synchronous Belt, Type XXH, 80 Teeth, 1-1/4 in Pitch, 100 in Overall Length, 5 in Width, 180 deg F, Neoprene, Fiberglass Reinforced Material, Black

Application

Aggregate and Cement, Agriculture, Minerals and Mining, Oil and Gas, Packaging Machinery and Unit Handling Industries

Features

  • Constant speed no slip, no creep, minimum backlash, because of the positive grip of the belt teeth with pulley grooves
  • High modulus strength member - needs minimum take-up
  • Freedom from initial belt tension - reduces bearing loads, increases life
  • Compact design Gearbelt® belts permit smaller pulleys, shorter centers, narrow belts
  • Lightweight high horsepower to weight ratio makes Gearbelt® drives ideal for any application where weight is an important factor
  • Less heat because Gearbelt® drives generate virtually no friction
  • No lubrication required
  • Wide load capacity range
  • Wide belt speed range
  • Gearbelt® drives are offered in five stock pitches to handle a wide range of loads
  • Molded teeth shear resistance teeth designed to provide smooth positive engagement with Gearbelt® pulleys
  • High tensile cord-specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
  • Compression section bonds to belt cords for protections against dirt, grease, oil, ozone and other environmental hazards
  • Dual timing belts Browning® offers a full line of dual timing belts which can provide 100% load capacity from either side

Specifications

Color:Black
Country of Origin:US
Material:Neoprene
Number of Teeth:80
Overall Length:100 in
Pitch:1-1/4 in
Reinforced Material:Fiberglass
Temperature Range:180 deg F
Width:5 in
