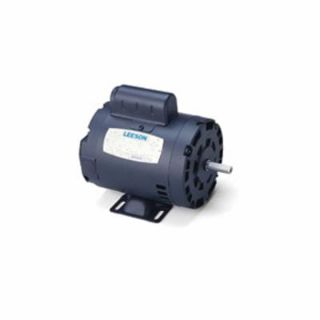

Actual Product May Vary From Image

100116.00 LEE

Name: 100116.00 LEE
Brand: Leeson Electric
SKU: 100116.00 LEE
Availability: OutOfStock

LEESON® 100116.00 Type CD Continuous Duty AC Motor, DP Enclosure, 0.33 hp, 115/208 to 230 VAC, 60 Hz, 48 Frame, 1725 rpm Speed, Rigid Mount

Manufacturer: Leeson Electric

Manufacturer part number: 100116.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

Type CD Continuous Duty

Description

LEESON® AC Motor, Type CD Continuous Duty, Compressor Motors, Fan & Blower Motors Application, 4-Pole, N NEMA Design Special Features, 0.33 hp, 115/208 to 230 VAC, 7.2/3.4 to 3.6 A, 60 Hz Frequency, 1725 rpm Speed, 1 Speed, DP Enclosure, 48 Frame, 1/2 in Dia Shaft, Selective CCW Rotation, 1.35 Service Factor, Ball Bearing, Rigid Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 8.87 in L x 5.78 in W x 7.28 in H Dimensions

Application

Pumps, Compressors, Blowers, Fans and Other Standard Industrial Applications

Standards

CSA Certified | UL Listed

Features

4-Pole, N NEMA Design

Specifications

Amperage Rating:	7.2/3.4 to 3.6 A
Application Type:	Compressor Motors, Fan & Blower Motors
Bearing Type:	Ball
Dimensions:	8.87 in L x 5.78 in W x 7.28 in H
Enclosure Type:	DP
Frame:	48
Frequency Rating:	60 Hz
Horsepower:	0.33 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	Rigid
Number of Speeds:	1
Rotation:	Selective CCW
Service Factor:	1.35
Shaft Size:	1/2 in Dia
Speed:	1725 rpm
Temperature Rating:	40 deg C
Voltage Rating:	115/208 to 230 VAC
