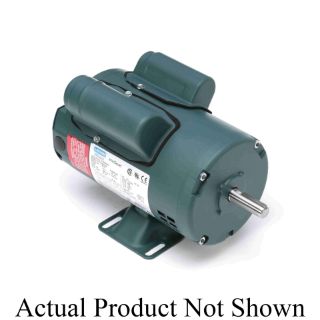

Actual Product May Vary From Image

100340.00 LEE

Name: 100340.00 LEE
Brand: Leeson Electric
SKU: 100340.00 LEE
Availability: OutOfStock

LEESON® 100340.00 2-Pole Continuous Duty AC Motor, DP Enclosure, 0.75 hp, 115/208 to 230 VAC, 60 Hz, 1 ph Phase, S56 Frame, 3450 rpm Speed, Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 100340.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Description

LEESON® AC Motor, 2-Pole Continuous Duty, Application Type: General Purpose AC Motors, Special Features: Capacitor Start Motors, 0.75 hp, 115/208 to 230 VAC, 9.8/4.8 to 4.9 A, 60 Hz, 1 ph, 3450 rpm, 1 Speed, DP, S56 Frame, 0.63 in Dia x 1.88 in L Shaft, Selective CCW, Service Factor: 1.25, Ball Bearing, 18 ft-lb, Rigid Base Mount, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 10.49 in L x 6.5 in W x 7.93 in H

Application

Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Capacitor Start Motors

Specifications

Amperage Rating:	9.8/4.8 to 4.9 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	10.49 in L x 6.5 in W x 7.93 in H
Enclosure Type:	DP
Frame:	S56
Frequency Rating:	60 Hz
Horsepower:	0.75 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	1 ph
Rotation:	Selective CCW
Service Factor:	1.25
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	3450 rpm
Temperature Rating:	40 deg C
Torque Rating:	18 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	115/208 to 230 VAC
