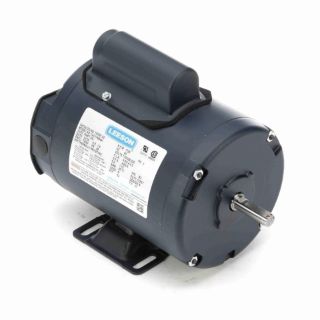

Picture of 100361.00 LEE
Actual Product May Vary From Image

100361.00 LEE

LEESON® 100361.00 4-Pole Continuous Duty AC Motor, Totally Enclosed Nonvented (TENV) Enclosure, 0.25 hp, 115/208 to 230 VAC, 60 Hz, 1 ph Phase, 48 Frame, 1725 rpm Speed, Rigid Base Mount
Manufacturer: Leeson Electric
Manufacturer part number: 100361.00
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$401.78

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® AC Motor, 4-Pole Continuous Duty, Application Type: General Purpose AC Motors, Special Features: Capacitor Start Motors, 0.25 hp, 115/208 to 230 VAC, 4.6/2.4 to 2.3 A, 60 Hz, 1 ph, 1725 rpm, 1 Speed, Totally Enclosed Nonvented (TENV), 48 Frame, 1/2 in Dia x 1-1/2 in L Shaft, Selective CCW, Service Factor: 1.15, Ball Bearing, 12 ft-lb, Rigid Base Mount, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 9.43 in L x 5.78 in W x 7.34 in H

Application

Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Capacitor Start Motors

Specifications

Amperage Rating:4.6/2.4 to 2.3 A
Application Type:General Purpose AC Motors
Bearing Type:Ball
Country of Origin:MX
Dimensions:9.43 in L x 5.78 in W x 7.34 in H
Enclosure Type:Totally Enclosed Nonvented (TENV)
Frame:48
Frequency Rating:60 Hz
Horsepower:0.25 hp
Insulation Class:Class B
Material:Rolled Steel
Mounting Type:Rigid Base
Number of Speeds:1
Phase:1 ph
Rotation:Selective CCW
Service Factor:1.15
Shaft Size:1/2 in Dia x 1-1/2 in L
Speed:1725 rpm
Temperature Rating:40 deg C
Torque Rating:12 ft-lb
Variable Torque Speed Range:10:1
Voltage Rating:115/208 to 230 VAC
