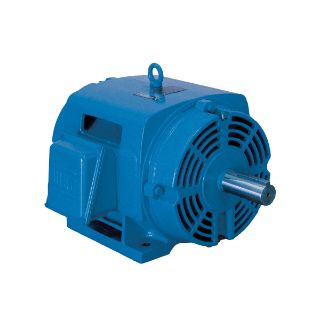

Actual Product May Vary From Image

10036OT3E365TS-G WEG

Name: 10036OT3E365TS-G WEG
Brand: WEG
SKU: 10036OT3E365TS-G WEG
Availability: OutOfStock

WEG 10036OT3E365TS-G AC Motor With Internal AEGIS® Ring, Open Drip-Proof Enclosure, 100 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 364/5TS Frame, 3600 rpm Speed, Footed Mount

Manufacturer: WEG

Manufacturer part number: 10036OT3E365TS-G

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

WEG

Alternate Supplier #

Applied Industrial Technologies - 113856621

Description

WEG AC Motor, Air Handling Motors, General Purpose HVAC Motors Application, 100 hp, 230/460 VAC, 112 A, 60 Hz Frequency, 3 ph ph, 3600 rpm Speed, Open Drip-Proof Enclosure, 364/5TS Frame, 1.15 Service Factor, Ball Bearing, Footed Mounting, Insulation Class: Class F, 27.638 in L Dimensions

Application

HVAC Applications

Features

High starting torque
New ventilation system for improved thermal performance
Robust design
Regreasable bearings
Motor frame painting system 500 hr salt spray resistant

Specifications

Amperage Rating:	112 A
Application Type:	Air Handling Motors, General Purpose HVAC Motors
Bearing Type:	Ball
Dimensions:	27.638 in L
Enclosure Type:	Open Drip-Proof
Frame:	364/5TS
Frequency Rating:	60 Hz
Horsepower:	100 hp
Insulation Class:	Class F
Mounting Type:	Footed
Phase:	3 ph
Service Factor:	1.15
Speed:	3600 rpm
Voltage Rating:	230/460 VAC
