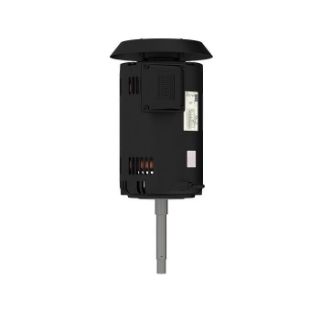

Picture of 10036OT3V365JPV WEG
Actual Product May Vary From Image

10036OT3V365JPV WEG

WEG 10036OT3V365JPV Closed Couple Pump Continuous-Duty AC Motor, Open Drip-Proof Enclosure, 100 hp, 200/400 VAC, 60 Hz, 3 ph Phase, 364/5JP Frame, 3560 rpm Speed, Footless Vertical Mount
Manufacturer: WEG
Manufacturer part number: 10036OT3V365JPV
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

WEG

Type

Closed Couple Pump Continuous-Duty

Description

WEG open drip proof motors are designed to meet demanding applications in environments where dirt and humidity are minimal. These motors are specifically designed to provide maximum ventilation and heat dissipation.
WEG AC Motor, Closed Couple Pump Continuous-Duty, Jet Pump (JM/JP) Motors Application, 100 hp, 200/400 VAC, 258/129 A, 60 Hz Frequency, 3 ph ph, 3560 rpm Speed, Open Drip-Proof Enclosure, 364/5JP Frame, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 146 ft-lb Torque, Footless Vertical Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 1000:1 Variable Torque Speed, 35.208 in L Dimensions

Standards

NEMA MG-1

Features

  • Stainless steel nameplate laser etched with high contrast background
  • Regreasable bearings

Specifications

Amperage Rating:258/129 A
Application Type:Jet Pump (JM/JP) Motors
Bearing Type:Ball
Dimensions:35.208 in L
Enclosure Type:Open Drip-Proof
Frame:364/5JP
Frequency Rating:60 Hz
Horsepower:100 hp
Insulation Class:Class F
Material:Cast Iron
Mounting Type:Footless Vertical
Phase:3 ph
Rotation:CW/CCW
Service Factor:1.15
Speed:3560 rpm
Temperature Rating:-20 to 40 deg C
Torque Rating:146 ft-lb
Variable Torque Speed Range:1000:1
Voltage Rating:200/400 VAC
