1008 1/2 AD

Name: 1008 1/2 AD
Brand: IDC-USA
SKU: 1008 1/2 AD
Price: 11.96 USD
Availability: InStock

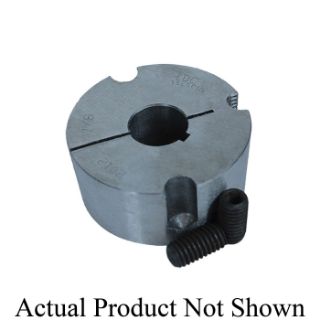

Actual Product May Vary From Image

Product Details

Manufacturer:

IDC-USA

Manufacturer part number:

IDC 1008-1/2

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$11.96 / EA

Description

Brand Name

IDC Select®

Type

Finished Bore

Description

IDC Select® bushings are available in H, QD®, Taper-Lock®, and Split Taper™ designs and are available in inch and metric sizes. They are stocked in popular finished bore sizes. All IDC Select® bushings are fully interchangeable with industry standard design.

IDC Select® Taper-Lock® Bushing, Finished Bore, 1/2 in Bore Dia, 1.38 in Barrel Dia, 8 deg Taper, 1-21/64 in Bolt Circle, 1/4-20 UNC Screw, 53 in-lb, 7/8 in Overall Length, 1/8 x 1/16 in Keyway, Nodular Graphite Cast Iron

Application

Air Handling, Mining, Wood Process, Agriculture, Aggregate, Oilfield, Air Compressor and Standard Industrial Applications

Standards

ANSI Specified | ASTM A536/A536-84 | SAE Standard

Features

Flush mount - clean and compact
Easy installation and dismount
8 deg taper - fits equivalent to shrink fit
Globally accepted
Keystock provided with shallow key sizes
1008 Taper-Lock® bushing

Includes

3 mm Hex Setscrew

Specifications

Barrel Diameter:	1.38 in
Bolt Circle Diameter:	1-21/64 in
Bore Diameter:	1/2 in
Keyway Size:	1/8 x 1/16 in
Material:	Nodular Graphite Cast Iron
Overall Length:	7/8 in
Screw Size:	1/4-20 UNC
Taper:	8 deg
Torque Rating:	53 in-lb
