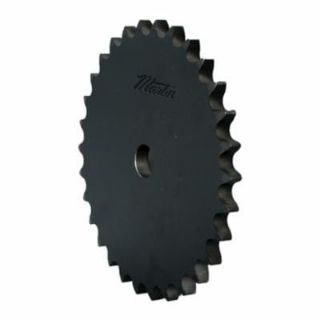

Actual Product May Vary From Image

100A24 MSG

Name: 100A24 MSG
Brand: Martin Sprocket & Gear
SKU: 100A24 MSG
Price: 128.44 USD
Availability: OutOfStock

Martin 100A24 Stock Bore Type A Single Pitch Roller Chain Sprocket, 1-1/4 in Dia Bore, 10.245 in OD, #100 Chain, 24 Teeth, 1-1/4 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 100A24

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$128.44

Qty:

Product Details

Brand Name

Martin

Type

Stock Bore Type A

Description

A plates are flat sprockets with no hub extension on either side. They can be altered for your application with bolt holes, custom bores, hardened teeth or special hubs welded to them.

Martin Single Pitch Roller Chain Sprocket, Stock Bore Type A, 1-1/4 in Bore Dia, 10.245 in Outside Dia, #100 Chain, 24 Teeth, 1-1/4 in Pitch, 9.577 in, 4-1/2 in Hub Dia, 0.692 in Length Through Bore, Steel

Standards

PROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Features

Plate only
Precise machining and processes ensure consistent finish and high quality

Specifications

Bore Diameter:	1-1/4 in
Chain Size:	#100
Country of Origin:	US
Hub Diameter:	4-1/2 in
Length Through Bore:	0.692 in
Material:	Steel
Number of Teeth:	24
Outside Diameter:	10.245 in
Pitch:	1-1/4 in
Pitch Diameter:	9.577 in
