100BTL20H BLT

Name: 100BTL20H BLT
Brand: Bearings Limited
SKU: 100BTL20H BLT
Price: 207.04 USD
Availability: OutOfStock

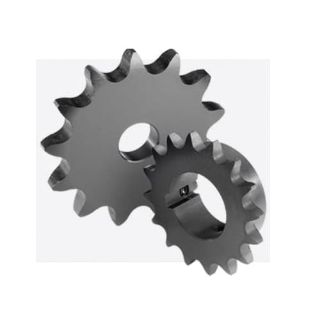

Actual Product May Vary From Image

Product Details

Manufacturer:

Bearings Limited

Manufacturer part number:

100BTL20H

Product Name:

100BTL20H BLT

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$207.04 / EA

Description

Brand Name

TRITAN®

Type

Finished Bore

Description

TRITAN® Sprockets are made of heavy duty forged steel, never sintered as some others, with black oxide finish for resistance to corrosion and long-lasting durability and dependability. Teeth are hardened to provide extra wear life, extending chain life and saving on downtime and replacement cost.

TRITAN® Single Strand Precision Roller Chain Sprocket, Finished Bore, Series: Inch Series, 2-1/2 in Bore, 8.642 in OD, #100 Chain, 20 Teeth, 1-1/4 in Pitch, 7.991 in Pitch Diameter, 4-1/2 in Diameter Hub, 5/8 in Screw, 5/8 in W Keyway, 1-3/4 in Length Through Bore, Taper Bushing, Forged Steel, Black Oxide

Application

Vehicle Transmissions, Conveyor Belts, Industrial Machinery and Mechanical Application

Standards

ANSI B29.1 | BIS Standard | ECCN EAR99

Features

Hardened teeth

Specifications

Bore Diameter:	2-1/2 in
Bushing Type:	Taper
Chain Size:	#100
Finish:	Black Oxide
Hub Diameter:	4-1/2 in
Keyway Size:	5/8 in W
Length Thru Bore:	1-3/4 in
Material:	Forged Steel
Number of Teeth:	20
Outside Diameter:	8.642 in
Pitch:	1-1/4 in
Pitch Diameter:	7.991 in
Screw Size:	5/8 in
Series:	Inch Series
