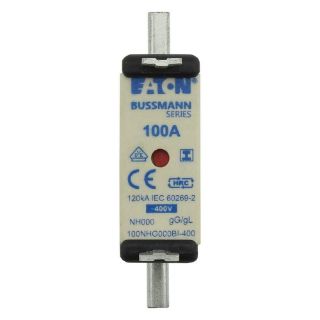

Actual Product May Vary From Image

100NHG000BI-400 BSF

Name: 100NHG000BI-400 BSF
Brand: Bussmann
SKU: 100NHG000BI-400 BSF
Availability: OutOfStock

Bussmann 100NHG000BI-400 Low Voltage Fuse Link With Insulated Metal Gripping Lug, 400 VAC, 100 A, Ceramic

Manufacturer: Bussmann

Manufacturer part number: 100NHG000BI-400

Availability: Expected Leadtime 40 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Low Voltage

Description

Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.

Bussmann Fuse Link, Low Voltage, 400 VAC, 100 A, 45 to 62 Hz, Holder Mount, Ceramic, 78.5 mm L x 21 mm W

Application

Industrial Applications

Standards

UL Listed | IEC 60269 | VDE 0636 | DIN 43620 | CE Certified | CCC Certified

Features

Voltage conducting metal gripping lugs
Reliable dual indicator system
Low temperature rise
Globally compliant
Steatite insulator, corrosion resistant aluminum end plates and plated steel screws, full contact silver plated brass blade construction
Cadmium and lead free

Specifications

Amperage Rating:	100 A
Country of Origin:	IN
Dimensions:	78.5 mm L x 21 mm W
Frequency Rating:	45 to 62 Hz
Material:	Ceramic
Mounting Type:	Holder
Voltage Rating:	400 VAC
