100Q13H MSG

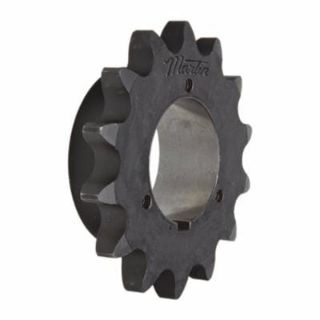

Picture of 100Q13H MSG
Actual Product May Vary From Image

Product Details

Manufacturer:
Martin Sprocket & Gear
Manufacturer part number:
100Q13H
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$196.78 / EA

Description

Brand Name

Martin

Type

MST® Q1 Bushed Solid Type 4

Description

Martin split taper sprocket is another style of bushed sprocket. The split taper bushing, when installed, offers a wide range of bore sizes.
Martin Split Single Roller Chain Sprocket, MST® Q1 Bushed Solid Type 4, 0.75 to 2.688 in Bore Dia, 5.821 in Outside Dia, 100 Chain, 13 Teeth, 1-1/4 in Pitch, 5.223 in, 4-1/8 in Hub Dia, 1/2 in W Keyway, 2-1/2 in Length Through Bore, Type Q1 Split Taper Bushing, Steel

Features

  • Manufactured of high carbon steel
  • Precise machining and processes ensure consistent finish and high quality
  • Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain

Specifications

Bore Diameter:0.75 to 2.688 in
Bushing Type:Type Q1 Split Taper
Chain Size:100
Country of Origin:US
Hub Diameter:4-1/8 in
Keyway Size:1/2 in W
Length Through Bore:2-1/2 in
Material:Steel
Number of Teeth:13
Outside Diameter:5.821 in
Pitch:1-1/4 in
Pitch Diameter:5.223 in
