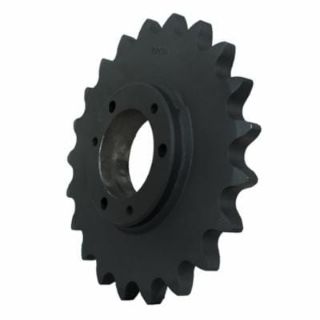

Actual Product May Vary From Image

100SF15 MSG

Name: 100SF15 MSG
Brand: Martin Sprocket & Gear
SKU: 100SF15 MSG
Price: 177.47 USD
Availability: OutOfStock

Martin 100SF15 QD Bushed Type B Single Pitch Roller Chain Sprocket, 6.631 in OD, #100 Chain, 15 Teeth, 1-1/4 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 100SF15

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$177.47

Qty:

Product Details

Brand Name

Martin

Type

QD Bushed Type B

Description

QD (quick detachable)is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip.

Martin Single Pitch Roller Chain Sprocket, QD Bushed Type B, 6.631 in Outside Dia, #100 Chain, 15 Teeth, 1-1/4 in Pitch, 6.012 in, 4-5/8 in Hub Dia, 2-1/16 in Length Through Bore, Type SF QD® Bushing, Steel

Standards

PROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Specifications

Bushing Type:	Type SF QD®
Chain Size:	#100
Country of Origin:	US
Hub Diameter:	4-5/8 in
Length Through Bore:	2-1/16 in
Material:	Steel
Number of Teeth:	15
Outside Diameter:	6.631 in
Pitch:	1-1/4 in
Pitch Diameter:	6.012 in
