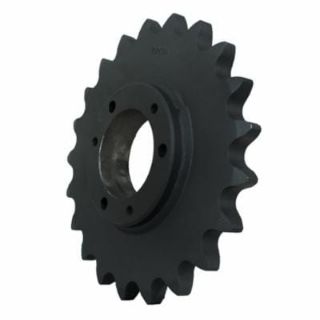

Actual Product May Vary From Image

100SF16H MSG

Name: 100SF16H MSG
Brand: Martin Sprocket & Gear
SKU: 100SF16H MSG
Price: 224.01 USD
Availability: OutOfStock

Martin Saber Tooth® 100SF16H QD Bushed Type B Single Pitch Roller Chain Sprocket With Hardened Teeth, 7.034 in OD, #100 Chain, 16 Teeth, 1-1/4 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 100SF16H

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$224.01

Qty:

Product Details

Brand Name

Martin

Type

QD Bushed Type B

Description

Martin Saber Tooth® sprockets have hardened teeth, which provide longer chain and sprocket life. The hardened teeth on the smaller sprocket of a roller chain drive are recommended if the drive ratio is four to one or greater if the smaller sprocket has 24 teeth or less and is running at a speed of over 600 rpm.

Martin Saber Tooth® Single Pitch Roller Chain Sprocket, QD Bushed Type B, 7.034 in Outside Dia, #100 Chain, 16 Teeth, 1-1/4 in Pitch, 6.407 in, 4-3/4 in Hub Dia, 2-1/16 in Length Through Bore, Type SF QD® Bushing, Steel

Standards

PROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Specifications

Bushing Type:	Type SF QD®
Chain Size:	#100
Country of Origin:	US
Hub Diameter:	4-3/4 in
Length Through Bore:	2-1/16 in
Material:	Steel
Number of Teeth:	16
Outside Diameter:	7.034 in
Pitch:	1-1/4 in
Pitch Diameter:	6.407 in
