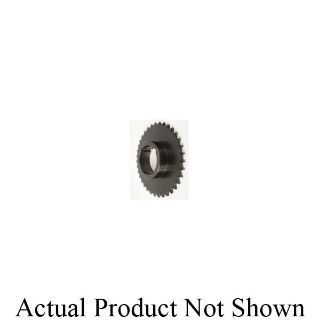

Actual Product May Vary From Image

100TB45 BRN

Name: 100TB45 BRN
Brand: Regal Rexnord
SKU: 100TB45 BRN
Availability: OutOfStock

Browning® 3745692 Single Strand Roller Chain Sprocket, 15/16 in Dia Bore, 18.645 in OD, #100 Chain, 45 Teeth, 1-1/4 in Pitch, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 3745692

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Single Strand

Description

Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.

Browning® Roller Chain Sprocket, Single Strand, 15/16 in Bore Dia, 18.645 in Outside Dia, #100 Chain, 45 Teeth, 1-1/4 in Pitch, 17.919 in, 6.895 in Hub Dia, 2 in Length Through Bore, Type 1 Taper Bore Bushing, Steel

Application

Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries

Standards

ANSI Specified

Features

This product has the Browning® exclusive twice the life guarantee
Compact design
Hardened teeth at no extra cost, drives sizes up to 30 teeth on 40 through 160 chain
1-11/16 in/ft taper
Setscrew or cap screw acts as external key
Flush fit, less space on shaft
No protruding flange
For use with 1-1/4 in pitch ANSI chain

Specifications

Bore Diameter:	15/16 in
Bushing Type:	Type 1 Taper Bore
Chain Size:	#100
Country of Origin:	CN
Hub Diameter:	6.895 in
Length Through Bore:	2 in
Material:	Steel
Number of Teeth:	45
Outside Diameter:	18.645 in
Pitch:	1-1/4 in
Pitch Diameter:	17.919 in
