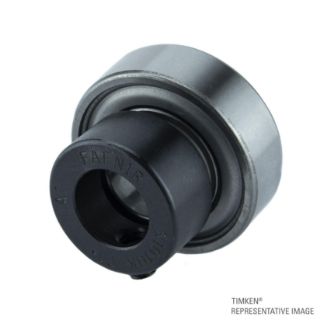

Actual Product May Vary From Image

1010KRRB TKN

Name: 1010KRRB TKN
Brand: Timken
SKU: 1010KRRB TKN
Price: 84.22 USD
Availability: OutOfStock

Wide Inner Ring Ball Bearing

Manufacturer: Timken

Manufacturer part number: 1010KRRB

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$84.22

Qty:

Product Details

Brand Name

Timken® Fafnir®

Description

Designed to maximize performance, Timken® Fafnir® ball bearing inserts are designed for straight shafts and can be positioned without shoulders, locknuts or adapters. Timken® locking options include set screws, self-locking collars and concentric collars. Timken Fafnir ball bearing inserts feature specialized product lines to solve specific application concerns. Our problem solver series helps prevent downtime by using superior technology to keep equipment running efficiently and improve your bottom line

Wide Inner Ring Ball Bearing | 15.88 mm 0.63 in Bore 39.99 mm 1.57 in OD

Features

Designed for extremely dirty or wet conditions
Feature R-seals with flared lips that firmly contact the ground O.D. of the inner ring
R-seals provide a positive seal against dirt and other contaminants, while effectively retaining the lubricant
Equipped with shroud-seals, providing extra effectiveness and protection
Extra-wide design provides additional shaft support and extra-large grease capacity
Longer sealing integrity provided by outboard and inboard caps
Self-tightens in application with no shaft damage

Specifications

Bearing Material:	Steel
Bearing Type:	Wide Inner Ring Ball Bearing Insert
Bore Size (ID) - in:	0.62525
Bore Size (ID) - mm:	15.88135
Bore Type:	Round
Component (I/R; O/R assembly):	Assembly
Duty Type:	Standard duty
Dynamic Load Rating:	2380
Inner Ring Width - Inch:	1.0938
Inner Ring Width - Millimeter:	27.78252
Insert Part Number:	N/P
Internal Clearance:	P(C3)
Load Rating UOM:	LB
Locking Type:	Eccentric
Lubrication Hole/Groove:	NO
Manufacturer Product Page Link:	https://www.timken.com/products/timken-engineered-bearings/housed-units/
Material - Rolling Elements (Ball or Roller):	STEEL
Maximum Operating RPM (Grease):	18890.0817625706
Maximum Operating RPM (Oil):	22038.428722999
Operating Temperature Max:	120° C
Operating Temperature Min:	-50° C
Outer Diameter - in:	1.574575
Outer Diameter - mm:	39.994205
Outer Diameter Type:	Cylindrical
Outer Ring Width - Inch:	0.47005
Outer Ring Width - Millimeter:	11.93927
Overall Width - in:	1.466
Overall Width - mm:	37.2364
Precision class:	ISO Normal/ABEC1
Relubricatable:	YES
Retainer Material:	Nylon
Retainer Type:	One Piece Molded Nylon
Rolling Element:	Ball
Static Load Rating:	1070
