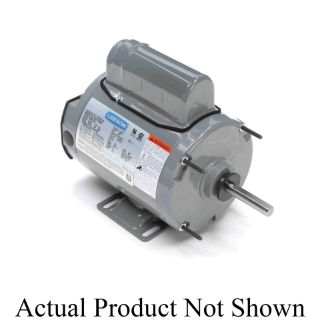

Actual Product May Vary From Image

101176.00 LEE

Name: 101176.00 LEE
Brand: Leeson Electric
SKU: 101176.00 LEE
Price: 467.40 USD
Availability: OutOfStock

LEESON® 101176.00 4-Pole Continuous Duty AC Motor, Totally Enclosed Nonvented (TENV) Enclosure, 0.5 hp, 115/230 VAC, 60 Hz, 1 ph Phase, S56Y Frame, 1750 rpm Speed, Rigid Base/Extended Thru-Bolt Mount

Manufacturer: Leeson Electric

Manufacturer part number: 101176.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$467.40

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® AC Motor, 4-Pole Continuous Duty, Application Type: Farm Duty Motors, Fan and Blower Motors, General Purpose HVAC Motors, Special Features: Capacitor Start Motors, 0.5 hp, 115/230 VAC, 7/3.5 A, 60 Hz, 1 ph, 1750 rpm, 1 Speed, Totally Enclosed Nonvented (TENV), S56Y Frame, 0.63 in Dia x 2.5 in L Shaft, Selective CCW, Service Factor: 1, Ball Bearing, 24.3 ft-lb, Rigid Base/Extended Thru-Bolt Mount, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 10.4 in L x 6.5 in W x 8.3 in H

Application

Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Capacitor Start Motors

Specifications

Amperage Rating:	7/3.5 A
Application Type:	Farm Duty Motors, Fan and Blower Motors, General Purpose HVAC Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	10.4 in L x 6.5 in W x 8.3 in H
Enclosure Type:	Totally Enclosed Nonvented (TENV)
Frame:	S56Y
Frequency Rating:	60 Hz
Horsepower:	0.5 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	Rigid Base/Extended Thru-Bolt
Number of Speeds:	1
Phase:	1 ph
Rotation:	Selective CCW
Service Factor:	1
Shaft Size:	0.63 in Dia x 2.5 in L
Speed:	1750 rpm
Temperature Rating:	40 deg C
Torque Rating:	24.3 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	115/230 VAC
