Actual Product May Vary From Image

1011KLL TKN

Name: 1011KLL TKN
Brand: Timken
SKU: 1011KLL TKN
Price: 149.94 USD
Availability: OutOfStock

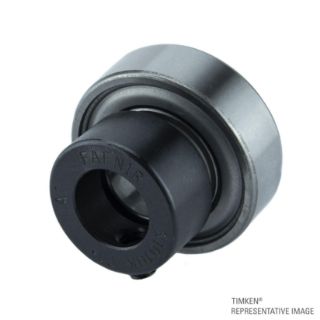

Wide Inner Ring Ball Bearing

Manufacturer: Timken

Manufacturer part number: 1011KLL

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$149.94

Qty:

Product Details

Brand Name

Timken® Fafnir®

Description

Designed to maximize performance, Timken® Fafnir® ball bearing inserts are designed for straight shafts and can be positioned without shoulders, locknuts or adapters. Timken® locking options include set screws, self-locking collars and concentric collars. Timken Fafnir ball bearing inserts feature specialized product lines to solve specific application concerns. Our problem solver series helps prevent downtime by using superior technology to keep equipment running efficiently and improve your bottom line

Wide Inner Ring Ball Bearing | 17.47 mm 0.69 in Bore 39.99 mm 1.57 in OD

Features

Bearings are prelubricated at the factory and require no further lubrication
These bearings are generally suitable for higher speed and/or higher temperature applications
Because they incorporate noncontact seals, these bearings have very low rotational torque

Specifications

Bearing Material:	Steel
Bearing Type:	Wide Inner Ring Ball Bearing Insert
Bore Size (ID) - in:	0.68775
Bore Size (ID) - mm:	17.46885
Bore Type:	Round
Component (I/R; O/R assembly):	Assembly
Duty Type:	Standard duty
Dynamic Load Rating:	2380
Fillet Radius - Inch:	0.024
Fillet Radius - Millimeter:	0.6096
Inner Ring Width - Inch:	1.09145
Inner Ring Width - Millimeter:	27.72283
Insert Part Number:	N/P
Internal Clearance:	P(C3)
Load Rating UOM:	LB
Locking Type:	Eccentric
Lubrication Hole/Groove:	NO
Manufacturer Product Page Link:	https://www.timken.com/products/timken-engineered-bearings/housed-units/
Material - Rolling Elements (Ball or Roller):	STEEL
Maximum Operating RPM (Grease):	17173.4258408539
Maximum Operating RPM (Oil):	20035.6634809962
Operating Temperature Max:	120° C
Operating Temperature Min:	-50° C
Outer Diameter - in:	1.574575
Outer Diameter - mm:	39.994205
Outer Diameter Type:	Cylindrical
Outer Ring Width - Inch:	0.47005
Outer Ring Width - Millimeter:	11.93927
Overall Width - in:	1.466
Overall Width - mm:	0.0577165354330709
Precision class:	ISO Normal/ABEC1
Relubricatable:	YES
Retainer Material:	Cold Rolled Steel
Retainer Type:	Two Piece Welded
Rolling Element:	Ball
Static Load Rating:	1070
