101649.00 LEE

Name: 101649.00 LEE
Brand: Leeson Electric
SKU: 101649.00 LEE
Availability: OutOfStock

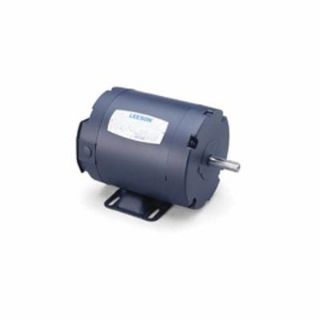

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

101649.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

Type TN Continuous Duty

Alternate Supplier #

Grainger - 36X801

Description

LEESON® AC Motor, Type TN Continuous Duty, Application Type: Compressor Motors, Fan and Blower Motors, 1/4 hp, 208 to 230/460 VAC, 1/0.5/1.1/0.55 A, 50/60 Hz, 1725/1425 rpm, 1 Speed, TENV, 48 Frame, 5/8 in Dia Shaft, Selective CCW, Service Factor: 1.149, Ball Bearing, Rigid Mount, 40 deg C, Insulation Class: Class B, Rolled Steel, 9.56 in L x 6.5 in W x 6.31 in H

Application

Pumps, Compressors, Fans, Blowers, Conveyors, Machine Tools and Other Industrial Applications

Standards

CSA Certified | UL Listed | UL Recognized

Features

Standard and premium efficient ratings
Inverter-rated, continuous duty
Class B insulation systems - 42, 48 and 56 frames
Class F insulation system - 140 frame and higher
Shielded ball bearings for direct coupled applications contact your local sales office for belted load applications
Dynamically balanced rotors
Torques exceed NEMA performance standards

Specifications

Amperage Rating:	1/0.5/1.1/0.55 A
Application Type:	Compressor Motors, Fan and Blower Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	9.56 in L x 6.5 in W x 6.31 in H
Enclosure Type:	TENV
Frame:	48
Frequency Rating:	50/60 Hz
Horsepower:	1/4 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	Rigid
Number of Speeds:	1
Rotation:	Selective CCW
Service Factor:	1.149
Shaft Size:	5/8 in Dia
Speed:	1725/1425 rpm
Temperature Rating:	40 deg C
Voltage Rating:	208 to 230/460 VAC
