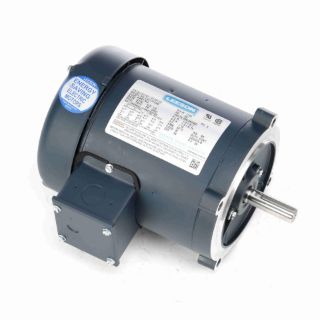

Actual Product May Vary From Image

101767.00 LEE

Name: 101767.00 LEE
Brand: Leeson Electric
SKU: 101767.00 LEE
Price: 407.97 USD
Availability: InStock

LEESON® 101767.00 Type TF Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 1/4 hp, 208 to 230/460 VAC, 60 Hz, 48 Frame, 1725 rpm Speed, Round Mount

Manufacturer: Leeson Electric

Manufacturer part number: 101767.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	1
Loading...

$407.97

Qty:

Product Details

Brand Name

LEESON®

Type

Type TF Continuous Duty

Description

LEESON® AC Motor, Type TF Continuous Duty, Compressor Motors, Fan & Blower Motors Application, 4-Pole, B NEMA Design Special Features, 1/4 hp, 208 to 230/460 VAC, 1.3 to 1.5/0.75 A, 60 Hz Frequency, 1725 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 48 Frame, 5/8 in Dia Shaft, Reversible Rotation, 1.149 Service Factor, Ball Bearing, Round Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 9.69 in L x 7.41 in W x 5.62 in H Dimensions

Application

Pumps, Compressors, Fans, Blowers, Conveyors, Machine Tools and Other Industrial Applications

Standards

CSA Certified | UL Listed

Features

4-Pole, B NEMA Design

Specifications

Amperage Rating:	1.3 to 1.5/0.75 A
Application Type:	Compressor Motors, Fan & Blower Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	9.69 in L x 7.41 in W x 5.62 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	48
Frequency Rating:	60 Hz
Horsepower:	1/4 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	Round
Number of Speeds:	1
Rotation:	Reversible
Service Factor:	1.149
Shaft Size:	5/8 in Dia
Speed:	1725 rpm
Temperature Rating:	40 deg C
Voltage Rating:	208 to 230/460 VAC
