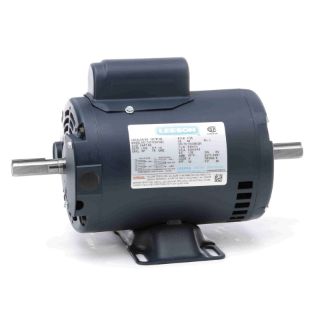

Actual Product May Vary From Image

101781.00 LEE

Name: 101781.00 LEE
Brand: Leeson Electric
SKU: 101781.00 LEE
Price: 970.00 USD
Availability: OutOfStock

LEESON® 101781.00 4-Pole Continuous Duty AC Motor, DP Enclosure, 0.5 hp, 115/208 to 230 VAC, 60 Hz, 1 ph Phase, S56Z Frame, 1725 rpm Speed, C-Face/Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 101781.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$970.00

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® AC Motor, 4-Pole Continuous Duty, Woodworking/Power Tool Motors Application, Capacitor Start Motors Special Features, 0.5 hp, 115/208 to 230 VAC, 8.8/4 to 4.4 A, 60 Hz Frequency, 1 ph ph, 1725 rpm Speed, 1 Speed, DP Enclosure, S56Z Frame, 0.63 in Dia x 1.87 in L Shaft, Selective CCW Rotation, 1.25 Service Factor, Ball Bearing, 24 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 12.43 in L x 6.5 in W x 7.28 in H Dimensions

Application

Commercial and Industrial Applications

Features

Capacitor Start Motors

Specifications

Amperage Rating:	8.8/4 to 4.4 A
Application Type:	Woodworking/Power Tool Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	12.43 in L x 6.5 in W x 7.28 in H
Enclosure Type:	DP
Frame:	S56Z
Frequency Rating:	60 Hz
Horsepower:	0.5 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Phase:	1 ph
Rotation:	Selective CCW
Service Factor:	1.25
Shaft Size:	0.63 in Dia x 1.87 in L
Speed:	1725 rpm
Temperature Rating:	40 deg C
Torque Rating:	24 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	115/208 to 230 VAC
