102014.00 LEE

Name: 102014.00 LEE
Brand: Leeson Electric
SKU: 102014.00 LEE
Availability: OutOfStock

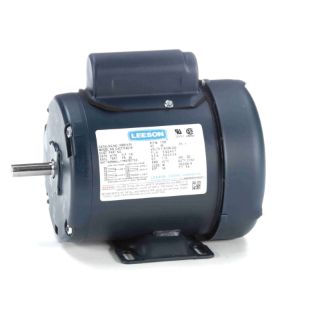

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

102014.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® AC Motor, 4-Pole Continuous Duty, Compressor Motors, Fan and Blower Motors, General Purpose AC Motors Application, Capacitor Start Motors Special Features, 0.25 hp, 115/208 to 230 VAC, 5.4/2.4 to 2.7 A, 60 Hz Frequency, 1 ph ph, 1725 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 48 Frame, 1/2 in Dia x 1-1/2 in L Shaft, Selective CCW Rotation, 1.15 Service Factor, Ball Bearing, 12.2 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 9.06 in L x 7.34 in H Dimensions

Application

Pumps, Conveyors, Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Capacitor Start Motors

Specifications

Amperage Rating:	5.4/2.4 to 2.7 A
Application Type:	Compressor Motors, Fan and Blower Motors, General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	9.06 in L x 7.34 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	48
Frequency Rating:	60 Hz
Horsepower:	0.25 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	1 ph
Rotation:	Selective CCW
Service Factor:	1.15
Shaft Size:	1/2 in Dia x 1-1/2 in L
Speed:	1725 rpm
Temperature Rating:	40 deg C
Torque Rating:	12.2 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	115/208 to 230 VAC
