103002A02F200 WOO

With the introduction of the Mini-Change® in 1968, Brad® pioneered miniature connectors by offering the first quickconnect alternative to hardwiring. Today, Brad® connectors from Molex continue to be recognized as the industry's leading connectors for their quality, durability and the widest selection in the market. The Brad® Mini-Change® connector family from Molex includes molded cordsets and receptacles available in 2 through 12-pole and 19-pole configurations, straight or right angle. Field installed connectors are available in 3, 4 and 5-pole configurations. Hardware choices include epoxy coated zinc die cast, stainless steel and nylon. A large selection of custom configurations is also available. To ensure a reliable, low resistance connection, Molex uses the patented Quad Beam™ female contact with gold over nickel plating and a stainless steel sleeve. The sealed construction provides IP67 protection. An anti-vibration feature prevents the coupler from loosening, even under extreme conditions. Brad® Mini-Change® connectors from Molex continue to evolve, providing the best, most cost effective solution for tough connector applications.

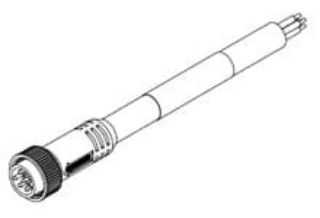

Brad® Mini-Change® Cordset, Size A Internal Threaded Single Ended, Series: 130006, Straight Male x Pigtail Connector, PVC, STOOW Cable, 20 ft Cable Length, PVC Cable, 3 Poles, 600 VAC/VDC, 13 A, IP67
