103022.00 LEE

Name: 103022.00 LEE
Brand: Leeson Electric
SKU: 103022.00 LEE
Availability: OutOfStock

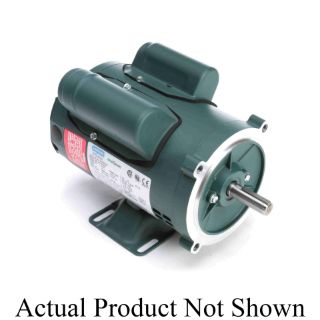

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

103022.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® AC Motor, 4-Pole Continuous Duty, Compressor Motors, Fan and Blower Motors Application, 0.5 hp, 230/460 VAC, 1.8/0.9 A, 60 Hz Frequency, 3 ph ph, 1725 rpm Speed, 1 Speed, DP Enclosure, S56C Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible Rotation, 1.25 Service Factor, Ball Bearing, 24 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 10.74 in L x 6.5 in W x 6.31 in H Dimensions

Application

Pumps, Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Standard, epact and premium efficient ratings
Inverter rated
Shielded ball bearings for direct coupled applications
Squirrel cage induction run

Specifications

Amperage Rating:	1.8/0.9 A
Application Type:	Compressor Motors, Fan and Blower Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	10.74 in L x 6.5 in W x 6.31 in H
Enclosure Type:	DP
Frame:	S56C
Frequency Rating:	60 Hz
Horsepower:	0.5 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.25
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	1725 rpm
Temperature Rating:	40 deg C
Torque Rating:	24 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
