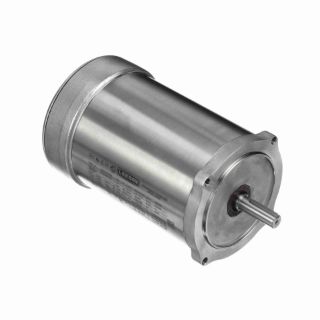

Picture of 103389.00 LEE
Actual Product May Vary From Image

103389.00 LEE

LEESON® Washguard® 103389.00 4-Pole Continuous Duty AC Motor, Totally Enclosed Nonvented (TENV) Enclosure, 0.5 hp, 208 to 230/460 VAC, 60 Hz, 3 ph Phase, S56C Frame, 1725 rpm Speed, Round/C-Face/Footless Mount
Manufacturer: Leeson Electric
Manufacturer part number: 103389.00
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1,208.63

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® Washguard® AC Motor, 4-Pole Continuous Duty, Washdown Duty Motors Special Features, 0.5 hp, 208 to 230/460 VAC, 1.9 to 1.8/0.9 A, 60 Hz Frequency, 3 ph ph, 1725 rpm Speed, 1 Speed, Totally Enclosed Nonvented (TENV) Enclosure, S56C Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 24 ft-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class F, Stainless Steel, 10:1 Variable Torque Speed, 11.49 in L x 6.3 in H Dimensions

Application

Bakery, Commercial and Industrial Applications

Standards

BISSC 769 | CSA Certified | CSA LR33543 | UL E57948

Features

Washdown Duty Motors

Specifications

Amperage Rating:1.9 to 1.8/0.9 A
Bearing Type:Ball
Country of Origin:US
Dimensions:11.49 in L x 6.3 in H
Enclosure Type:Totally Enclosed Nonvented (TENV)
Frame:S56C
Frequency Rating:60 Hz
Horsepower:0.5 hp
Insulation Class:Class F
Material:Stainless Steel
Mounting Type:Round/C-Face/Footless
Number of Speeds:1
Phase:3 ph
Rotation:Reversible
Service Factor:1.15
Shaft Size:0.63 in Dia x 1.88 in L
Speed:1725 rpm
Temperature Rating:40 deg C
Torque Rating:24 ft-lb
Variable Torque Speed Range:10:1
Voltage Rating:208 to 230/460 VAC
