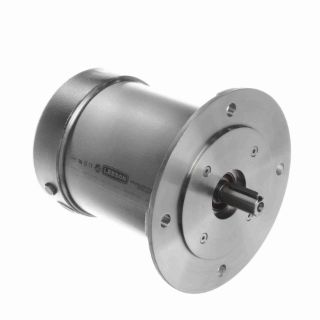

Actual Product May Vary From Image

103405.00 LEE

Name: 103405.00 LEE
Brand: Leeson Electric
SKU: 103405.00 LEE
Price: 2,353.00 USD
Availability: OutOfStock

LEESON® Washguard® 103405.00 4-Pole Continuous Duty AC Motor, Totally Enclosed Nonvented (TENV) Enclosure, 0.33 hp, 208 to 230/460 VAC, 60 Hz, 3 ph Phase, 80 Frame, 1725 rpm Speed, B5 Flange/Round Mount

Manufacturer: Leeson Electric

Manufacturer part number: 103405.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$2,353.00

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® Washguard® AC Motor, 4-Pole Continuous Duty, Special Features: IEC Metric Motors, Washdown Duty Motors, 0.33 hp, 208 to 230/460 VAC, 1.3 to 1.3/0.65 A, 60 Hz, 3 ph, 1725 rpm, 1 Speed, Totally Enclosed Nonvented (TENV), 80 Frame, 0.75 in Dia x 1.57 in L Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 16 ft-lb, B5 Flange/Round Mount, 40 deg C, Insulation Class: Class F, Stainless Steel, 10:1 Variable Torque Speed, 7.87 in Dia x 9.87 in L

Application

Pharmaceutical, Food Processing, Beverage Industries, Clean Room and Severe Chemical-Processing, Bakery, Commercial and Industrial Applications

Standards

BISSC 769 | CSA Certified | CSA LR33543 | UL E57948

Features

IEC Metric Motors, Washdown Duty Motors

Specifications

Amperage Rating:	1.3 to 1.3/0.65 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	7.87 in Dia x 9.87 in L
Enclosure Type:	Totally Enclosed Nonvented (TENV)
Frame:	80
Frequency Rating:	60 Hz
Horsepower:	0.33 hp
Insulation Class:	Class F
Material:	Stainless Steel
Mounting Type:	B5 Flange/Round
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.75 in Dia x 1.57 in L
Speed:	1725 rpm
Temperature Rating:	40 deg C
Torque Rating:	16 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	208 to 230/460 VAC
