Actual Product May Vary From Image

104000A01F1202 WOO

Name: 104000A01F1202 WOO
Brand: Molex/Woodhead
SKU: 104000A01F1202 WOO
Price: 63.57 USD
Availability: OutOfStock

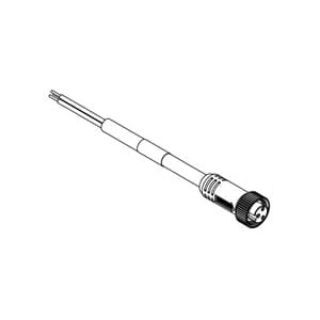

Woodhead® Brad® Mini-Change® 130006-0739 Single End Cordset, 7/8-16 UN Straight Female x Pigtail Connector, 12 ft L Cable, 4 Poles, Single Keyway

Manufacturer: Molex/Woodhead

Manufacturer part number: 130006-0739

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$63.57

Qty:

Product Details

Brand Name

Woodhead®

Type

Single End

Description

Woodhead® Brad® Mini-Change® Cordset, Single End, Series: 130006, Straight Female x Pigtail Connector, 7/8-16 UN Connector, PVC, STOOW Cable, 12 ft Cable Length, PVC Cable, 4 Poles, Single Keyway, 600 VAC, 10 A, Black/Green/Red/White/Yellow Wire Pin Colors, NEMA IP67

Standards

CSA Certified | RoHS Compliant | UL E152210

Features

16 AWG yellow cable
0.42 in cable diameter
Threaded coupling style
Copper alloy contact
No LED indicator
Nylon coupling nut
Gold plated mating
-20 to 105 deg C temperature rating

Specifications

Amperage Rating:	10 A
Cable Length:	12 ft
Cable Material:	PVC
Cable Type:	STOOW
Connector Material:	PVC
Connector Size:	7/8-16 UN
Connector Type:	Straight Female x Pigtail
Country of Origin:	US
Keyway:	Single
NEMA Rating:	NEMA IP67
Number of Poles:	4
Series:	130006
Voltage Rating:	600 VAC
Wire Pin Colors:	Black/Green/Red/White/Yellow
