107HMTP05 13T SAE-B 2 BRN

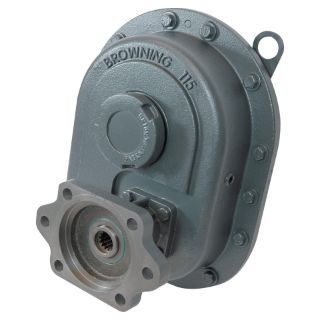

Browning® TorqTaper® Plus PB0007 Single Reduction Type HMTP Shaft Mount Reducer, Involute Spline Input, Tapered Bore Output, 1 hp, 5:1 Gear Ratio, 350 rpm Maximum Output, 36.013 in-lb Input/180.07 in-lb Output Torque Rating
Manufacturer: Regal Rexnord
Manufacturer part number: PB0007
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Browning®

Type

Single Reduction Type HMTP

Description

Shaft mount reducers are enclosed helical gear reducers with a hollow output. They are mounted directly on the input shaft of the driven machine and are supported by the shaft and torque arm arrangement or motor mount frame. This eliminates the need for additional components to transmit torque from the reducer to the equipment.
Browning® TorqTaper® Plus Shaft Mount Reducer, Single Reduction Type HMTP, 5:1 Gear Ratio, 1 hp, Involute Spline Input, Tapered Bore Output, 1-7/16 in Output, 350 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 36.013 in-lb Input/180.07 in-lb Output, 3.77 in Centre Distance, 80 % Efficiency, Synthetic/Mineral Oil Lubrication, Hydraulic Mount, 9.76 in L x 10.55 in W x 12.07 in H

Application

Aggregate and Cement, Agriculture, Grain, Minerals and Mining, Unit Handling, Water and Wastewater

Standards

AGMA Standard

Features

  • Exclusive taper bushing, single TorqTaper® bushing installs from either side of the unit for easy on - easy off mounting, with stabilizer ring
  • For applications where electric motors are not available, such as portable equipment
  • Compatible with many hydraulic motors currently used in similar applications, standard SAE mounting patterns
  • Can be configured with screw conveyor components or as a shaft mounted reducer
  • Patented mounting system, barrier seal system and increased ratings
  • Replaces all popular hydraulic shaft mounted reducers
  • 13T SAE-B 2 hydraulic motor mounting style

Specifications

Centre Distance:3.77 in
Country of Origin:US
Dimensions:9.76 in L x 10.55 in W x 12.07 in H
Efficiency:80 %
Gear Ratio:5:1
Horsepower:1 hp
Input Maximum Speed:1750 rpm
Input Type:Involute Spline
Lubrication Type:Synthetic/Mineral Oil
Mounting Type:Hydraulic
Output Maximum Speed:350 rpm
Output Size:1-7/16 in
Output Type:Tapered Bore
Torque Rating:36.013 in-lb Input/180.07 in-lb Output
