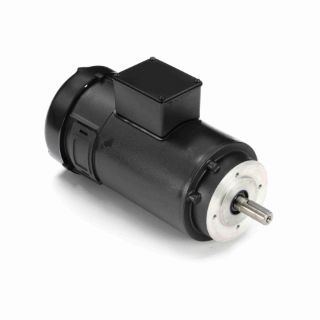

Actual Product May Vary From Image

108372.00 LEE

Name: 108372.00 LEE
Brand: Leeson Electric
SKU: 108372.00 LEE
Price: 1,015.67 USD
Availability: OutOfStock

LEESON® 108372.00 2-Pole Continuous Duty DC Motor, 21 in-lb Torque, 1.1 kW Power Rating, 180 VDC, 7 A, 80 Frame, 3000 rpm Speed

Manufacturer: Leeson Electric

Manufacturer part number: 108372.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,015.67

Qty:

Product Details

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Description

LEESON® DC Motor, 2-Pole Continuous Duty, IEC Metric Motors Special Features, 1.1 kW Power, 180 VDC, 7 A, 3000 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 80 Frame, 0.75 in Dia x 1.57 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 21 in-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 14.15 in L x 6.14 in W x 8.05 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

IEC Metric Motors

Specifications

Amperage Rating:	7 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	14.15 in L x 6.14 in W x 8.05 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	80
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Rigid Base
Number of Speeds:	1
Power Rating:	1.1 kW
Rotation:	Reversible
Service Factor:	1
Shaft Size:	0.75 in Dia x 1.57 in L
Speed:	3000 rpm
Temperature Rating:	40 deg C
Torque Rating:	21 in-lb
Voltage Rating:	180 VDC
