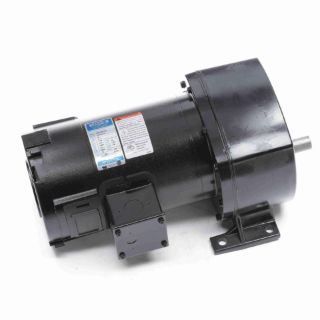

Actual Product May Vary From Image

108701.00 LEE

Name: 108701.00 LEE
Brand: Leeson Electric
SKU: 108701.00 LEE
Price: 1,651.92 USD
Availability: OutOfStock

LEESON® 108701.00 P1100 Parallel Shaft Continuous Duty Gear Motor, 90 VDC, 0.25 hp, 43:1 Gear Ratio, 12 rpm Max, 1030 in-lb Torque

Manufacturer: Leeson Electric

Manufacturer part number: 108701.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,651.92

Qty:

Product Details

Brand Name

LEESON®

Type

Parallel Shaft Continuous Duty

Description

LEESON® Gear Motor, Parallel Shaft Continuous Duty, Series: P1100, 90 VDC, 2.7 A Full Load Amperage, 0.25 hp, 3, 12 rpm Maximum, 3/4 in Shaft Dia, 1-1/2 in Shaft Length, Reversible, 1030 in-lb, 43:1 Gear Ratio, Right-Angle Capacitor Start Motor, Ball Bearing, 700 lb Overhung Load, Special Mount, 40 deg C Ambient, Class F Insulation, Totally Enclosed Nonvented (TENV), Die Cast Aluminum Housing, 14.24 in L x 8.13 in W x 6.6 in H

Standards

AGMA Class 9 | CSA Certified | UL Listed

Features

Rugged die cast aluminum gear housing for maximum gear and bearing support
Precision machined gearing and hardened for maximum load capability
All gearing designed and rated to AGMA class 9 standards and to withstand momentary shock overload of 200%
Oversized output bearings for greater overhung load capacity and long life
High carbon alloy output shaft provides maximum strength and rigidity
All needle bearing journals are precision ground after heat treating to provide maximum fit and finish
Heavy duty industrial oil seals keep lubricant in and dirt out
Gears and bearings are splash lubricated with permanent, heavy duty gear oil
Fractional horsepower DC motors

Includes

Conduit Box

Specifications

Bearing Type:	Ball
Country of Origin:	US
Dimensions:	14.24 in L x 8.13 in W x 6.6 in H
Enclosure Type:	Totally Enclosed Nonvented (TENV)
Full Load Amperage:	2.7 A
Gear Ratio:	43:1
Horsepower:	0.25 hp
Housing Material:	Die Cast Aluminum
Insulation Type:	Class F
Maximum Speed:	12 rpm
Motor Type:	Right-Angle Capacitor Start
Mounting Type:	Special
Overhung Load:	700 lb
Phase:	3
Rotation Type:	Reversible
Series:	P1100
Shaft Diameter:	3/4 in
Shaft Length:	1-1/2 in
Temperature Rating:	40 deg C Ambient
Torque Rating:	1030 in-lb
Voltage Rating:	90 VDC
