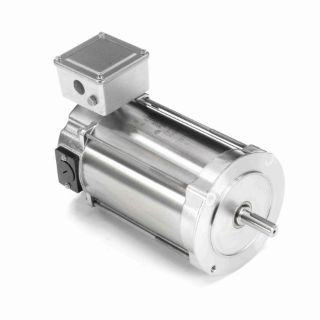

Actual Product May Vary From Image

109079.00 LEE

Name: 109079.00 LEE
Brand: Leeson Electric
SKU: 109079.00 LEE
Price: 1,790.39 USD
Availability: OutOfStock

LEESON® Washguard® 109079.00 4-Pole Continuous Duty Low Voltage DC Motor, 12 in-lb Torque, 0.33 hp Power Rating, 90 VDC, 3.8 A, US56C Frame, 1750 rpm Speed

Manufacturer: Leeson Electric

Manufacturer part number: 109079.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,790.39

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty Low Voltage

Description

LEESON® Washguard® DC Motor, 4-Pole Continuous Duty Low Voltage, IEC Metric Motors Special Features, 0.33 hp Power, 90 VDC, 3.8 A, 1750 rpm Speed, 1 Speed, Totally Enclosed Nonvented (TENV) Enclosure, US56C Frame, 0.625 in Dia x 2.05 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 12 in-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class F, Stainless Steel, 6.5 in Dia x 11.81 in L x 8.91 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

IEC Metric Motors

Specifications

Amperage Rating:	3.8 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	6.5 in Dia x 11.81 in L x 8.91 in H
Enclosure Type:	Totally Enclosed Nonvented (TENV)
Frame:	US56C
Insulation Class:	Class F
Material:	Stainless Steel
Mounting Type:	Round/C-Face/Footless
Number of Speeds:	1
Power Rating:	0.33 hp
Rotation:	Reversible
Service Factor:	1
Shaft Size:	0.625 in Dia x 2.05 in L
Speed:	1750 rpm
Temperature Rating:	40 deg C
Torque Rating:	12 in-lb
Voltage Rating:	90 VDC
