109103.00 LEE

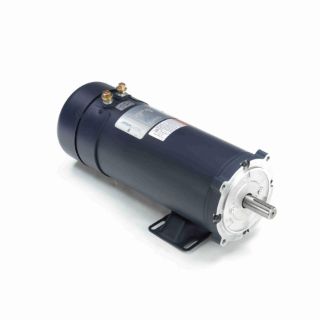

LEESON® 109103.00 Continuous Duty Low Voltage DC Motor, 52.5 in-lb Torque, 60 kW Power Rating, 24 VDC, 60 A, WMS56CZ Frame, 1800 rpm Speed
Manufacturer: Leeson Electric
Manufacturer part number: 109103.00
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1,711.46

Product Details

Brand Name

LEESON®

Type

Continuous Duty Low Voltage

Description

LEESON® DC Motor, Continuous Duty Low Voltage, Permanent Magnet DC Motors Special Features, 60 kW Power, 24 VDC, 60 A, 1800 rpm Speed, Totally Enclosed Fan Cooled Enclosure, WMS56CZ Frame, 0.875 in Dia x 2.13 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 52.5 in-lb Torque, Bolt-On/C-Face/Footed/Rigid Base Mounting, 40 deg C, Insulation Class: Class H, Rolled Steel, 17.38 in L x 6.5 in W x 7.33 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Permanent Magnet DC Motors

Specifications

Amperage Rating:60 A
Bearing Type:Ball
Country of Origin:US
Dimensions:17.38 in L x 6.5 in W x 7.33 in H
Enclosure Type:Totally Enclosed Fan Cooled
Frame:WMS56CZ
Insulation Class:Class H
Material:Rolled Steel
Mounting Type:Bolt-On/C-Face/Footed/Rigid Base
Power Rating:60 kW
Rotation:Reversible
Service Factor:1
Shaft Size:0.875 in Dia x 2.13 in L
Speed:1800 rpm
Temperature Rating:40 deg C
Torque Rating:52.5 in-lb
Voltage Rating:24 VDC
