10GB5V1700 BRN

Name: 10GB5V1700 BRN
Brand: Regal Rexnord
SKU: 10GB5V1700 BRN
Availability: OutOfStock

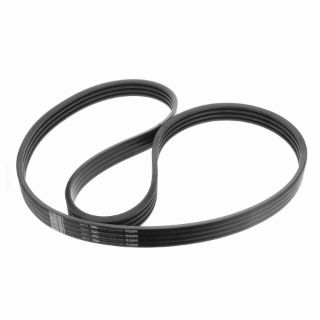

Browning® 358 Gripband® 3791365 Banded V-Belt, 5V Section, 5/8 in W Top, 170 in L Outside, 17/32 in THK, EPDM

Manufacturer: Regal Rexnord

Manufacturer part number: 3791365

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Banded

Description

Browning® 358 Gripband® V-Belt, Banded, 5V Section, 5/8 in Top Width, 170 in Outside Length, 17/32 in Thickness, 10 Ribs, 4.4 to 6.7/7.1 to 10.9/11.8 to 16 in Diameter Minimum Pulley, -60 to 250 deg F, EPDM, Polyester Reinforced

Application

Compact Industrial Drives, Blowers and Exhausters, Laundry Machinery, Brick Machinery, Textile Machinery, Saw Mill and Woodworking Machinery

Features

Browning® banded belts provide the belt solution for pulsing/shock loads and the demands of the aggregate industry
Banding material aids in preventing material from getting between the sheave and belts
Eliminates the possibility of belt turnover on narrow and long centers are banded belts assure all belts within the drive run in uniformity to the sheaves without any possibility of belt turnover, even when centers are very long
Ideal for pulsing loads
Special blend of fiberglass and polyester for belt cord flexibility and strength
Length tolerances 10X tighter than industry standard
Single belt fabric with no overlap for reduced vibration
Tubular woven fabric for lengthwise flexibility and cross rigidity
Ground form edges on AX, BX, 3VX and 5VX belts for reduced vibration

Specifications

Country of Origin:	MX
Material:	EPDM
Minimum Pulley Diameter:	4.4 to 6.7/7.1 to 10.9/11.8 to 16 in
Number of Ribs:	10
Outside Length:	170 in
Reinforced Material:	Polyester
Section Size:	5V
Temperature Range:	-60 to 250 deg F
Thickness:	17/32 in
Top Width:	05/08/2021 in
