Actual Product May Vary From Image

10JES EPDM SLEEVE LOV

Name: 10JES EPDM SLEEVE LOV
Brand: Lovejoy
SKU: 10JES EPDM SLEEVE LOV
Price: 95.83 USD
Availability: OutOfStock

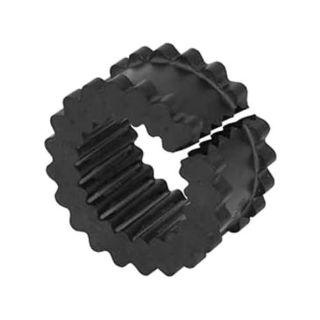

Lovejoy® 68514435451 1-Piece Split Elastomer Sleeve, 10JES Coupling, 3.44 in L, 7.06 in OD, 3600 rpm Max, EPDM

Manufacturer: Lovejoy

Manufacturer part number: 68514435451

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$95.83

Qty:

Product Details

Brand Name

Lovejoy®

Type

1-Piece Split

Description

Lovejoy® Elastomer Sleeve, 1-Piece Split, 10JES Coupling, 3.44 in Length, 1-1/8 to 2-3/4 in ID, 7.06 in OD, 3735 in-lb Torque, 3600 rpm Maximum, For Use With: S-Flex Endurance™ Coupling, -30 to 375 deg F, EPDM, Black

Standards

Features

The one-piece split design provides solutions for applications with unique requirements where small shaft separations inhibit the installation of a one-piece solid sleeve
Pre-molded teeth along the diameter of the sleeve engage with teeth of the coupling flanges
No clamps or screws are needed to connect the flanges with the flexible sleeve which securely lock together under torque for smooth transmission of power
Torque is transmitted through shear loading of the sleeve
All three sleeve materials are highly elastic which permits the S-Flex coupling to protect connected equipment from harmful shock loading, vibration and shaft misalignment
Unless otherwise specified, S-Flex Endurance™ couplings are supplied with EPDM flexible sleeves
EPDM has good resistance to commonly used chemicals and is generally not affected by dirt or moisture
These sleeves feature a one-piece design molded in EPDM and neoprene rubber
In the case of JES and JNS-types, the one-piece design is split to provide for ease of installation and removal

Specifications

Country of Origin:	US
Coupling Size:	10JES
Finish:	Black
Inside Diameter:	1-1/8 to 2-3/4 in
Length:	3.44 in
Material:	EPDM
Maximum Speed:	3600 rpm
Outside Diameter:	7.06 in
Suitable For Use With:	S-Flex Endurance™ Coupling
Temperature Rating:	-30 to 375 deg F
Torque Rating:	3735 in-lb
