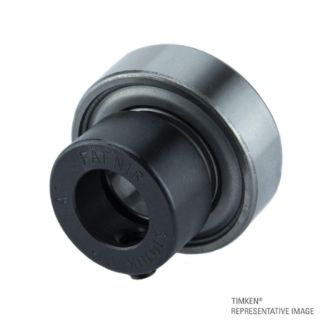

Actual Product May Vary From Image

1100KLL TKN

Name: 1100KLL TKN
Brand: Timken
SKU: 1100KLL TKN
Price: 169.82 USD
Availability: OutOfStock

WIR Eccentric, Standard Duty

Manufacturer: Timken

Manufacturer part number: 1100KLL

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$169.82

Qty:

Product Details

Brand Name

Timken® Fafnir®

Description

Designed to maximize performance, Timken® Fafnir® ball bearing inserts are designed for straight shafts and can be positioned without shoulders, locknuts or adapters. Timken® locking options include set screws, self-locking collars and concentric collars. Timken Fafnir ball bearing inserts feature specialized product lines to solve specific application concerns. Our problem solver series helps prevent downtime by using superior technology to keep equipment running efficiently and improve your bottom line

WIR Eccentric, Standard Duty | 25.41 mm 1 in Bore 51.99 mm 2.05 in OD

Features

These wide-inner-ring ball bearings have either one or two labyrinth-type Mechani-Seals and steel cage
These bearings are prelubricated at the factory and require no further lubrication
Suitable for higher-speed and/or higher temperature applications
Because they incorporate non-contact seals, these bearings have very low rotational torque
high level performance in extreme environment

Specifications

Bearing Material:	Steel
Bearing Type:	Wide Inner Ring Ball Bearing Insert
Bore Size (ID) - in:	1.00025
Bore Size (ID) - mm:	25.40635
Bore Type:	Round
Component (I/R; O/R assembly):	Assembly
Duty Type:	Standard duty
Dynamic Load Rating:	3490
Fillet Radius - Inch:	0.039
Fillet Radius - Millimeter:	0.9906
Inner Ring Width - Inch:	1.37265
Inner Ring Width - Millimeter:	34.86531
Insert Part Number:	N/P
Internal Clearance:	P(C3)
Load Rating UOM:	LB
Locking Type:	Eccentric
Lubrication Hole/Groove:	NO
Manufacturer Product Page Link:	https://www.timken.com/products/timken-engineered-bearings/housed-units/
Material - Rolling Elements (Ball or Roller):	STEEL
Maximum Operating RPM (Grease):	11808.0716041462
Maximum Operating RPM (Oil):	13776.0835381706
Operating Temperature Max:	120° C
Operating Temperature Min:	-50° C
Outer Diameter - in:	2.04695
Outer Diameter - mm:	51.99253
Outer Diameter Type:	Cylindrical
Outer Ring Width - Inch:	0.58825
Outer Ring Width - Millimeter:	14.94155
Overall Width - in:	1.748
Overall Width - mm:	44.3992
Precision class:	ISO Normal/ABEC1
Relubricatable:	YES
Retainer Material:	Cold Rolled Steel
Retainer Type:	Two Piece Welded
Rolling Element:	Ball
Static Load Rating:	1760
